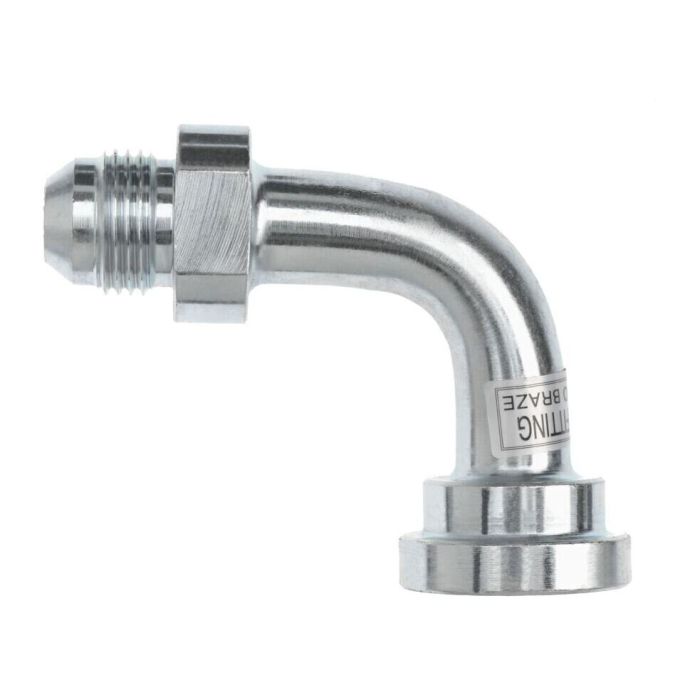

S/F 90DEG #20 MJIC X #32 FLANGE CD61

Ask A Question

Description & Features

The S/F 90DEG #20 MJIC X #32 FLANGE CD61 is a robust hydraulic fitting designed for seamless integration into industrial systems. Featuring a 90-degree elbow configuration, this component facilitates efficient directional changes in hydraulic lines, minimizing space requirements without compromising fluid flow. With a male JIC thread size of 1-5/8-12 and a flange size of #32, it ensures secure and leak-free connections, vital for maintaining system integrity.

This fitting is part of the Brennan Industries' Series 1704, renowned for durability and reliability in demanding applications. Measuring 3.976 inches in length (L1) and 3.504 inches in height (L2), it is engineered to suit specific installation spaces, offering compatibility with various hydraulic setups. It accommodates a 1-1/4 inch tube outer diameter, making it versatile for different hydraulic applications.

SKU: 1704-20-32

Supplier Part Number (MPN): 1704-20-32

Specifications

af Dimensions
1.688 in
Connection Size 1
1-1/4 in
Connection Size 2
2 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.688 in
l1 Dimensions
3.976 in
l2 Dimensions
3.504 in
Material
Steel
Material Construction
S20C Steel
Series
1704 Series
Thread Size
1-5/8-12
Tube Outside Diameter
1-1/4 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Hank R on Nov 8, 2025, 11:34 AM
Will this fitting hold up alright in a hydraulic system running around 2500 PSI?
Answer by: Customer Support on Nov 10, 2025, 11:21 AM
This S/F 90DEG fitting is designed for robust industrial hydraulic systems, providing secure, leak-free connections which are vital for maintaining system integrity under pressure.
