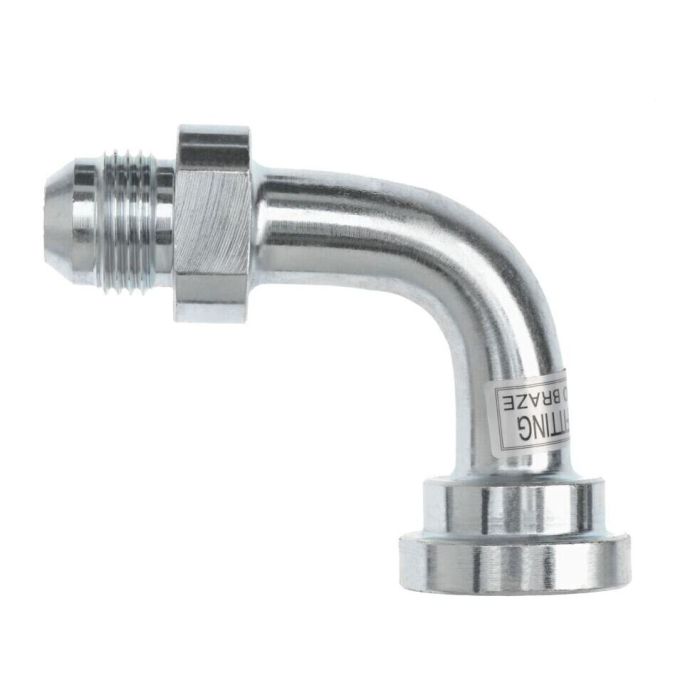

BRENNAN 24 MJ - 20 FLANGE 90 ELBOW -61

Ask A Question

Description & Features

This Brennan 24 MJ - 20 FLANGE 90 ELBOW -61 features a 1 7/8-12 UN Brennan 1 thread and a 1 1/4 Brennan 2 flange.

It is part of the 1704 series, offering a 1 1/2 inch tube OD and an AF dimension of 2 inches. The elbow has an L1 length of 4.21 inches and an L2 length of 3.03 inches.

SKU: 1704-24-20

Supplier Part Number (MPN): 1704-24-20

Specifications

af Dimensions
2 in
Connection Size 1
1-1/2 in
Connection Size 2
1-1/4 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
2 in
l1 Dimensions
4.21 in
l2 Dimensions
3.03 in
Material
Steel
Material Construction
S20C Steel
Maximum Operating Pressure
3000 psi
Series
1704 Series
Thread Size
1-7/8-12
Tube Outside Diameter
1-1/2 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Gene M on Apr 24, 2025, 8:19 AM
Will this elbow fit a standard 1 1/2 inch tube, or is it some kinda odd size?
Answer by: Customer Support on Apr 25, 2025, 8:40 PM
For tube connections, this elbow is made for a 1 1/2 inch outside diameter tube.
