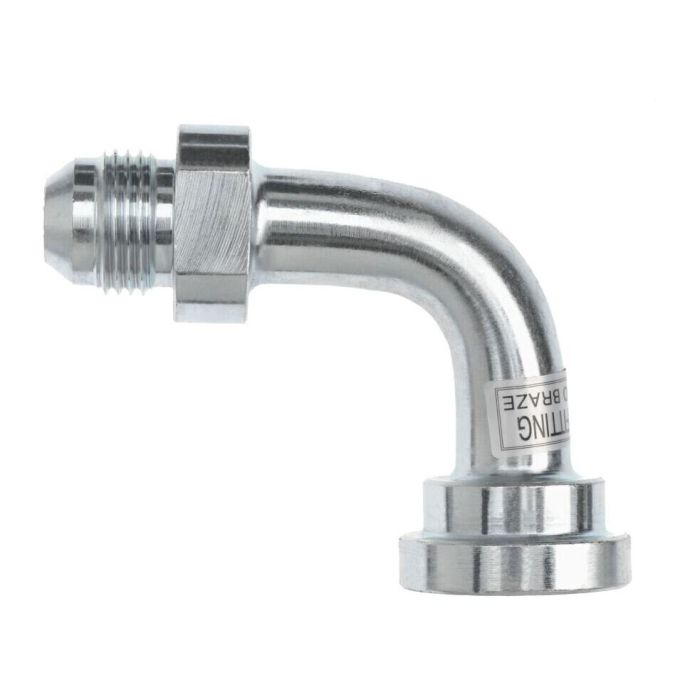

main product photo

24MJ -32 FLANGE 90 ELBOW CODE 61 SWEPT

Ask A Question

Description & Features

This 24MJ -32 FLANGE 90 ELBOW CODE 61 SWEPT features a 2" flange and a 1 7/8-12 UN Brennan 1 thread. With a Brennan series of 1704, this elbow fitting is designed for 1 1/2" OD tubing.

The swept elbow has a Brennan AF In dimension of 2 inches, a Brennan L1 dimension of 4.57 inches, and a Brennan L2 dimension of 3.86 inches.

SKU: 1704-24-32

Supplier Part Number (MPN): 1704-24-32

Alternate Part Numbers: 1046-2532

Specifications

af Dimensions
2 in
Connection Size 1
1-1/2 in
Connection Size 2
2 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
2 in
l1 Dimensions
4.57 in
l2 Dimensions
3.86 in
Material
Steel
Material Construction
S20C Steel
Series
1704 Series
Thread Size
1-7/8-12
Tube Outside Diameter
1-1/2 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Dale M on Oct 10, 2025, 9:46 AM
What size tubing does this elbow work with? Gotta make sure it fits my setup.
Answer by: Customer Support on Oct 12, 2025, 6:38 AM
This elbow fitting is designed for 1 1/2" OD tubing, according to the specs.
