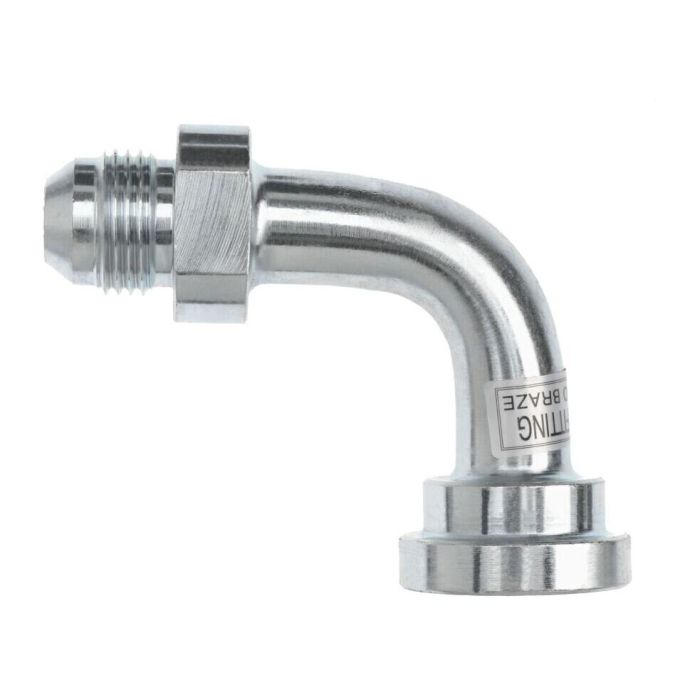

main product photo

32MJ-24 FLANGE 90 ELBOW CODE 61

Ask A Question

Description & Features

This 32MJ-24 FLANGE 90 ELBOW CODE 61 features a 2 1/2-12 UN Brennan 1 thread and a 1 1/2 Brennan 2 flange. The elbow has an AF In measurement of 2 3/4 inches, an L1 In measurement of 5.04 inches, and an L2 In measurement of 3.66 inches.

This 90-degree elbow fitting is part of the Brennan 1704 series and accommodates a 2-inch tube OD. It's designed with male connections for secure and reliable use in hydraulic applications.

SKU: 1704-32-24

Supplier Part Number (MPN): 1704-32-24

Specifications

af Dimensions
2-3/4 in
Connection Size 1
2 in
Connection Size 2
1-1/2 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
2-3/4 in
l1 Dimensions
5.04 in
l2 Dimensions
3.66 in
Material
Steel
Material Construction
S20C Steel
Series
1704 Series
Thread Size
2-1/2-12
Tube Outside Diameter
2 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Johnny Y on Mar 17, 2026, 7:54 PM
Just want to make sure, this elbow will fit a 2-inch OD tube, right?
Answer by: Customer Support on Mar 19, 2026, 12:55 PM
this 90-degree elbow fitting is designed to work with a 2-inch outer diameter tube.
