BRENNAN ADAPTER

Description & Features

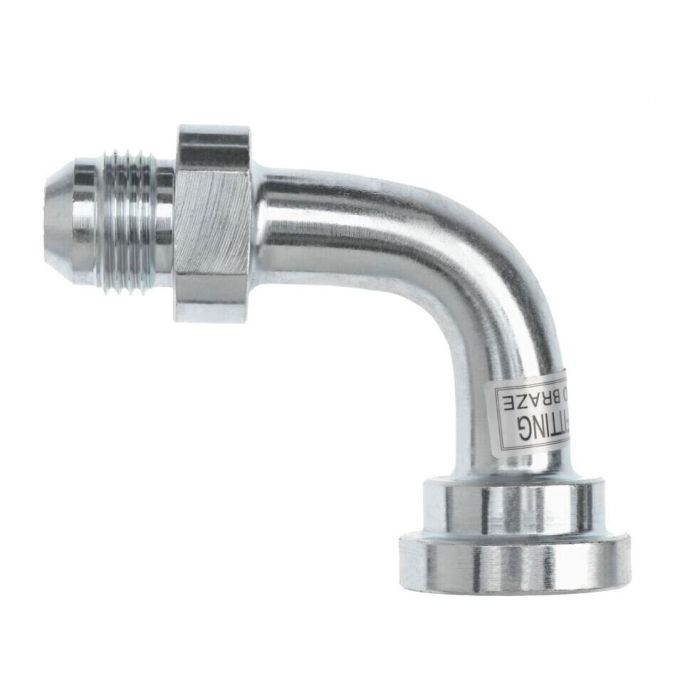

A 90-degree elbow adapter from Brennan Industries, this fitting connects a 2 1/2-12 UN male JIC thread to a 2-inch Code 61 flange port, making it well suited for high-pressure hydraulic circuits where a right-angle transition between a JIC line and a flanged component is required. The Series 1704 design accommodates a 2-inch tube OD and carries an across-flats dimension of 2 3/4 inches.

Overall installed dimensions include an L1 length of 5.79 inches and an L2 length of 4.84 inches, supporting accurate clearance planning in tight manifold or valve configurations. The male end designation confirms this fitting presents an external JIC thread for direct engagement with a corresponding female seat.

SKU: 1704-32-32

Supplier Part Number (MPN): 1704-32-32

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1704-32-32	Product Weight 4.17 lbs

Product Questions & Answers (1)

Question by: Wes H on Dec 15, 2025, 9:16 PM

Reckon this elbow adapter will work in a tight spot? Got some valves crammed together.

Answer by: Customer Support on Dec 17, 2025, 3:39 PM

Its overall installed lengths are 5.79 inches (L1) and 4.84 inches (L2), so you'll want to check those dimensions against your available space to ensure adequate clearance.
