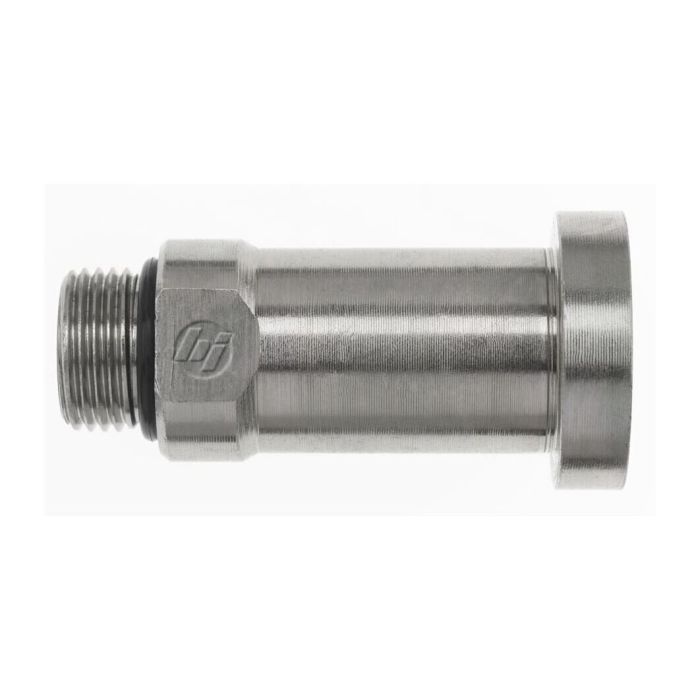

24MB-24 CODE 61 FLANGE STRAIGHT

Description & Features

The 24MB-24 Code 61 Flange Straight fitting features a 1 1/2 inch flange and a 1 7/8-12 UN thread. This fitting has a 2.125 inch Brennan Af In dimension and a 3.140 inch Brennan L Lgth.

This 1710 series Brennan fitting is a male configuration.

SKU: 1710-24-24

Supplier Part Number (MPN): 1710-24-24

Specifications

Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Flanged, Male SAE ORB	Connection Type 1 Male SAE ORB	Connection Type 2 SAE Code 61 Flange	Dimension Standards SAE J1926, SAE J518	Dimensions 3.14 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 2-1/8 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 3000 psi	Operating Temperature -40 to 250 deg F	Series 1710 Series	Thread Size 1-7/8-12	Tube Outside Diameter 1-1/2 in

Product Questions & Answers (1)

Question by: Bobby H on Dec 13, 2025, 5:23 PM

So this is a Code 61 flange, right? Just want to make sure I'm getting the right one.

Answer by: Customer Support on Dec 14, 2025, 7:27 PM

That's correct. This is a Code 61 flange straight fitting.
