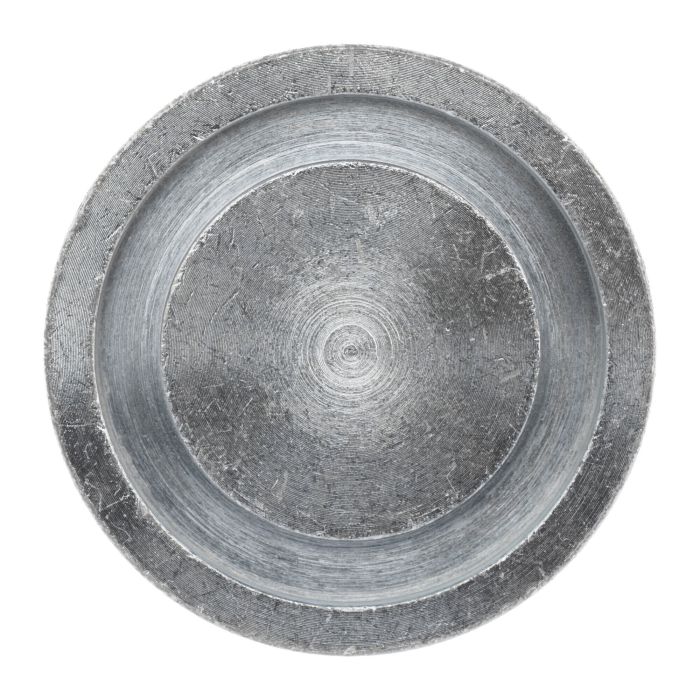

BRENNAN 16 61 FLANGE PLUG

Description & Features

Manufactured by Brennan Industries Inc the 16 O-Ring Face Flange Plug Code 61 is an essential component designed for industrial applications requiring reliable sealing and connection. The plug is part of the 1724 series and is engineered to meet stringent quality standards ensuring high performance and durability in demanding environments.

The BRENNAN 16 61 flange plug offers superior sealing capabilities due to its O-Ring face design making it suitable for various hydraulic systems and high-pressure applications.

Constructed from high-quality materials it guarantees long-lasting service and minimal maintenance contributing to efficient system functionality.

The design and build of this flange plug align with industry requirements providing a dependable solution for professionals seeking robust and secure connections.

Supplier Part Number: 1724-16

Specifications

Connection Size 1 1 in	Connection Type Flanged	Connection Type 1 SAE Code 61 Flange	Dimension Standards SAE J518	Dimensions 0.56 in L	Finish Trivalent Zinc-Plated	Fitting Type Plug	Hex Size 2-5/8 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 5000 psi	Series 1724 Series	Thread Size 2-1/2-12

Product Questions & Answers (3)

Question by: Floyd B on Apr 13, 2025, 9:30 PM

Is this plug something I can use in place of another one on a hydraulic system? I'm trying to cap off a flange.

Answer by: Customer Support on Apr 15, 2025, 9:15 AM

This 16 O-Ring Face Flange Plug Code 61 from Brennan is indeed designed for industrial applications where you need a reliable seal and connection, especially for capping off flanges in hydraulic systems. It's built to provide a secure and durable seal.

Question by: Floyd F on Jun 4, 2025, 9:02 AM

got a code 61 o-ring face flange port i need to cap off, is this the right kind of plug?

Answer by: Customer Support on Jun 6, 2025, 6:25 AM

Built as a Code 61 O-Ring Face Flange plug, it’s meant to close off an O-ring face flange connection where you need a solid seal in a hydraulic setup.

Question by: Harold R on Jun 23, 2025, 1:45 PM

flange plug for a code 61 system, this the right one to cap off an unused port?

Answer by: Customer Support on Jun 24, 2025, 5:55 PM

For capping an unused Code 61 flange port, yes, that's exactly what the 1724-16 is built for. It uses an O-ring face seal design, so you get a solid, leak-free closure on open ports in hydraulic systems running under high-pressure conditions. The size 16 designation matches a 1-inch SAE flange port in the Code 61 standard, so as long as your port matches that, you're in good shape.
