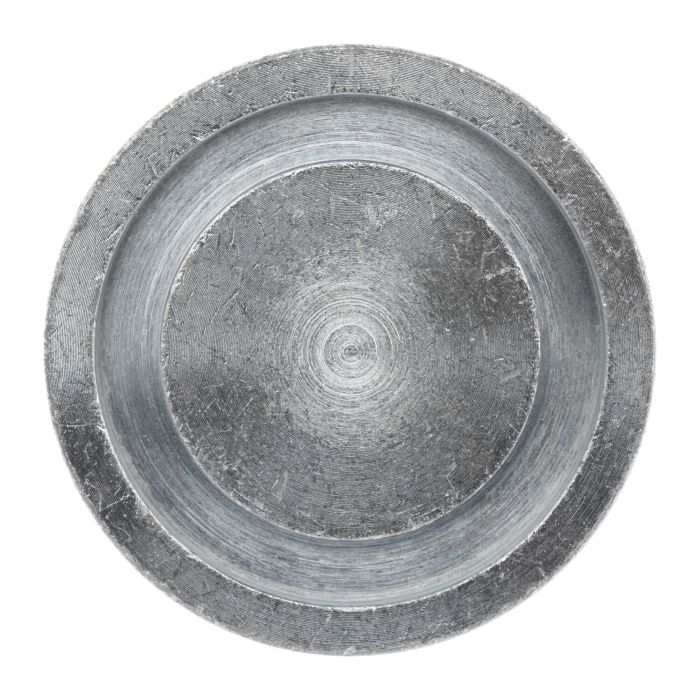

-32 code 61 plug

Description & Features

Designed to seal unused ports in Code 61 flange connections, this -32 O-Ring Face Flange Plug from Brennan Industries provides a reliable, leak-resistant closure for high-pressure hydraulic circuits. The O-ring face seal design ensures a positive, metal-to-metal-free seal at the flange interface, making it well suited for hydraulic systems where port integrity and contamination prevention are critical.

The -32 code 61 plug conforms to Code 61 flange standards and is sized for -32 (2 inch) flange ports. Brennan Industries' 1724 Series plugs are a dependable choice for capping open flange ports during assembly, maintenance, or system reconfiguration.

SKU: 1724-32

Supplier Part Number (MPN): 1724-32

Specifications

Connection Size 1 2 in	Connection Type Flanged	Connection Type 1 SAE Code 61 Flange	Dimension Standards SAE J518	Dimensions 0.62 in L	Finish Trivalent Zinc-Plated	Fitting Type Plug	Hex Size 2-5/8 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 3000 psi	Series 1724 Series	Thread Size 2-1/2-12

Product Questions & Answers (1)

Question by: Donna W on May 23, 2025, 6:42 PM

Will this plug hold up in a high-pressure hydraulic system, or do I need something beefier?

Answer by: Customer Support on May 25, 2025, 6:13 AM

Designed for Code 61 flange connections, this plug provides a reliable seal in high-pressure hydraulic circuits.
