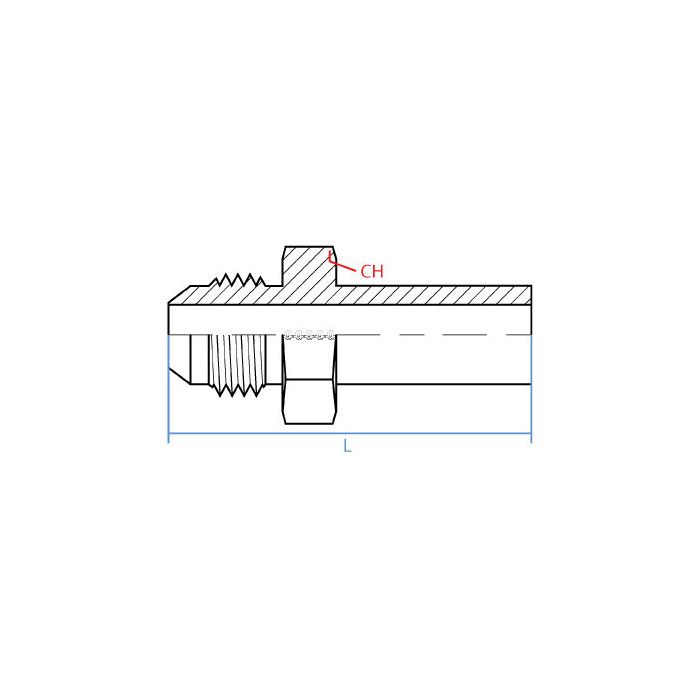

main product photo

Male Jic X Metric Standpipe

Ask A Question

Description & Features

Manufactured from steel in a straight configuration, this Male JIC X Metric Standpipe provides a reliable transition between a 1/2" male JIC connection (3/4-16 UNF thread) on one end and a 16mm female DIN Standpipe on the other. This combination makes it well suited for hydraulic systems where JIC-threaded lines must interface with metric DIN standpipe ports.

Produced by Adaptall, the fitting measures 47.5mm in length with a 22mm wrench width, offering straightforward installation in tight or inline configurations. The all-steel construction supports the mechanical demands typical of industrial hydraulic circuits.

SKU: 9200-08-16

Supplier Part Number (MPN): 9200-08-16

Specifications

Brand
adapt-all
Connection Size 1
1/2 in
Connection Size 2
S16
Connection Type
Female Standpipe, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female DIN Standpipe
Dimension Standards
DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514
Dimensions
47.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Series
9200 Series
Thread Size
3/4-16

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Male Jic X Metric Standpipe

9200-04-06

1/4 in

6 mm

7/16-20

14 mm

Male Jic X Metric Standpipe

9200-04-08

1/4 in

8 mm

7/16-20

14 mm

Male Jic X Metric Standpipe

9200-04-10

1/4 in

10 mm

7/16-20

14 mm

Male Jic X Metric Standpipe

9200-06-10

3/8 in

10 mm

9/16-18

16 mm

Male Jic X Metric Standpipe

9200-06-12

3/8 in

12 mm

9/16-18

16 mm

Male Jic X Metric Standpipe

9200-08-12

1/2 in

12 mm

3/4-16

22 mm

Male Jic X Metric Standpipe

9200-08-14

1/2 in

14 mm

3/4-16

22 mm

Male Jic X Metric Standpipe

9200-08-15

1/2 in

15 mm

3/4-16

22 mm

Male Jic X Metric Standpipe

9200-10-16

5/8 in

S16

7/8-14

27 mm

Male Jic X Metric Standpipe

9200-10-20

5/8 in

20 mm

7/8-14

27 mm

Male Jic X Metric Standpipe

9200-12-16

3/4 in

S16

1-1/16-12

32 mm

Male Jic X Metric Standpipe

9200-12-18

3/4 in

18 mm

1-1/16-12

32 mm

Male Jic X Metric Standpipe

9200-12-20

3/4 in

20 mm

1-1/16-12

32 mm

Male Jic X Metric Standpipe

9200-12-22

3/4 in

22 mm

1-1/16-12

32 mm

Male Jic X Metric Standpipe

9200-12-25

3/4 in

S25

1-1/16-12

32 mm

Male Jic X Metric Standpipe

9200-16-25

1 in

S25

1-5/16-12

35 mm

Male Jic X Metric Standpipe

9200-20-35

1-1/4 in

35 mm

1-5/8-12

Male Jic X Metric Standpipe

9200-20-38

1-1/4 in

38S

1-5/8-12

Male Jic X Metric Standpipe

9200-24-42

1-1/2 in

1-7/8-12

Product Questions & Answers (2)

Question by: Rick B on Feb 13, 2026, 7:32 AM
Got a hydraulic line running 3/4-16 UNF on the JIC side that needs to tie into a 16mm DIN standpipe port. This the right fitting for that?
Answer by: Customer Support on Feb 14, 2026, 1:12 PM
That's exactly what this one is built for. One end is a 1/2" male JIC with a 3/4-16 UNF thread, and the other connects to a 16mm female DIN standpipe. Straight configuration, all steel, so it drops right into that kind of inline transition without any adapter stacking.
Question by: Roy F on Jan 3, 2026, 6:31 AM
got a hose with a 1/2 JIC male end, will this standpipe get me over to a 16mm DIN standpipe port?
Answer by: Customer Support on Jan 4, 2026, 4:45 PM
For tying those two standards together, it steps from a 1/2 inch male JIC with 3/4-16 UNF threads on one side to a 16 mm female DIN standpipe connection on the other.
