Male Jic X Metric Standpipe

Description & Features

This straight steel fitting adapts between JIC and DIN standpipe connections. It features a 5/8" male JIC end with a 7/8 - 14 UNF thread and a 20mm female DIN standpipe end.

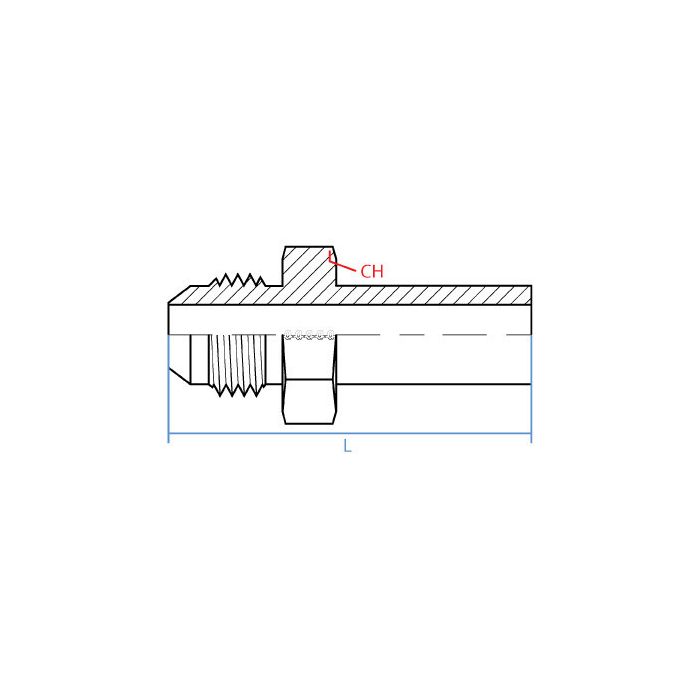

The Adaptall Male JIC X Metric Standpipe has a wrench flat of 27mm and an overall length of 59mm.

SKU: 9200-10-20

Supplier Part Number (MPN): 9200-10-20

Specifications

Connection Size 1 5/8 in	Connection Size 2 20 mm	Connection Type Female Standpipe, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Female DIN Standpipe	Dimension Standards DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514	Dimensions 59 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 27 mm	Material Steel	Material Construction Carbon Steel	Series 9200 Series	Thread Size 7/8-14

Product Questions & Answers (2)

Question by: Keith H on Jan 29, 2026, 12:27 PM

trying to hook a JIC hose up to a metric standpipe port, is this the right adapter?

Answer by: Customer Support on Jan 31, 2026, 11:46 AM

For that kind of mix-and-match connection, it’s meant to adapt between a 5/8 inch male JIC end with 7/8-14 UNF threads and a 20 mm female DIN standpipe end, in a straight steel fitting.

Question by: Duane H on Feb 18, 2026, 9:45 PM

Will this here fitting hold up to regular use on a piece of farm equipment?

Answer by: Customer Support on Feb 20, 2026, 11:54 AM

This fitting is made from steel, so it should be durable enough for most regular farm equipment applications.
