Male Metric X Female Npt

Description & Features

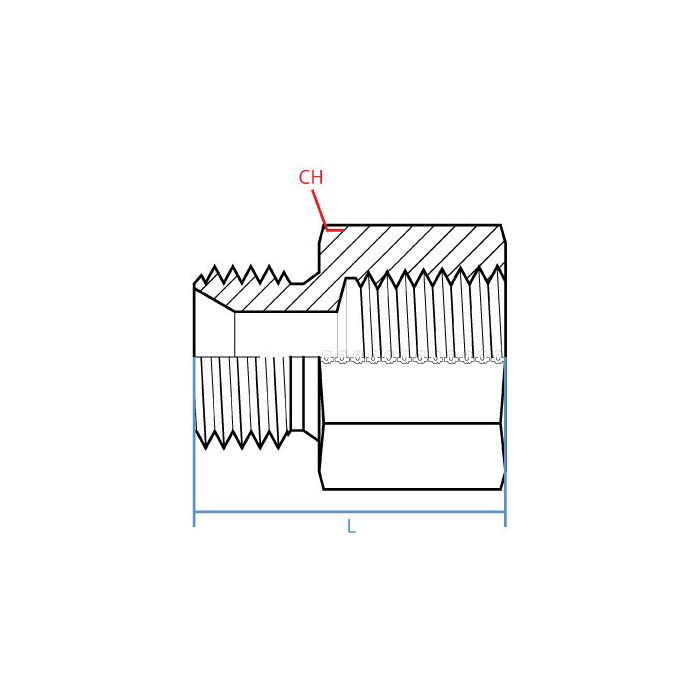

Constructed from steel in a straight configuration, this Adaptall adapter connects an M30 x 1.5 male metric thread on one end to a 1/2-14 NPTF female thread on the other. The straight body measures 30mm in length with a 38mm wrench flat width, making it straightforward to install and torque with standard tooling.

This Male Metric X Female Npt adapter is well suited for hydraulic circuits requiring a transition between metric and NPT thread standards, a common need when integrating components from different regional or manufacturer specifications. Adaptall's interchangeable fitting system allows this adapter to be paired with a range of hose ends and port connections across various hydraulic assemblies.

SKU: 9235-30X1.5-08

Supplier Part Number (MPN): 9235-30X1.5-08

Specifications

Brand adapt-all	Connection Size 1 30 mm	Connection Size 2 1/2 in	Connection Type FNPT, Male Metric	Connection Type 1 Male Metric	Connection Type 2 Female NPT	Dimension Standards ANSI B1.20.3, DIN 7631	Dimensions 30 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9235 Series	Thread Size M30x1.5 x 1/2-14

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
9235-06X1.0-02	6 mm	1/8 in	M6x1 x 1/8-27	14 mm
9235-08X1.0-02	8 mm	1/8 in	M8x1 x 1/8-27	14 mm
9235-10X1.5-02		1/8 in	M10x1.5 x 1/8-27	16 mm
9235-10X1.25-02		1/8 in	M10x1.25 x 1/8-27	16 mm
9235-12X1.0-04	L12	1/4 in	M12x1 x 1/4-18	19 mm
9235-12X1.25-04	L12	1/4 in	M12x1.25 x 1/4-18	19 mm
9235-30X1.5-06	30 mm	3/8 in	M30x1.5 x 3/8-18
9235-30X1.5-12	30 mm	3/4 in	M30x1.5 x 3/4-14
9235-33X1.5-08		1/2 in	M33x1.5 x 1/2-14	41 mm

Product Questions & Answers (2)

Question by: Rhonda S on Jul 29, 2025, 8:12 PM

Got a pump port that's M30 x 1.5 metric and I need to tie into a 1/2 inch NPT female line, this the right adapter for that?

Answer by: Customer Support on Jul 31, 2025, 6:45 PM

That's what this one's built for. One end is M30 x 1.5 male metric, the other is 1/2-14 NPTF female, straight body, no angle. If your port is male metric and your line connection is female NPT, this bridges that gap without any extra fittings in between.

Question by: Jean W on Jul 13, 2025, 5:45 PM

got a port that’s M30 x 1.5 male, and my hose end is 1/2-14 NPTF. is this the piece that ties those together?

Answer by: Customer Support on Jul 14, 2025, 9:29 PM

For tying those two thread standards together, that’s exactly what it’s built for. One side is M30 x 1.5 male metric, and the other side is 1/2-14 NPTF female, in a straight steel adapter body.
