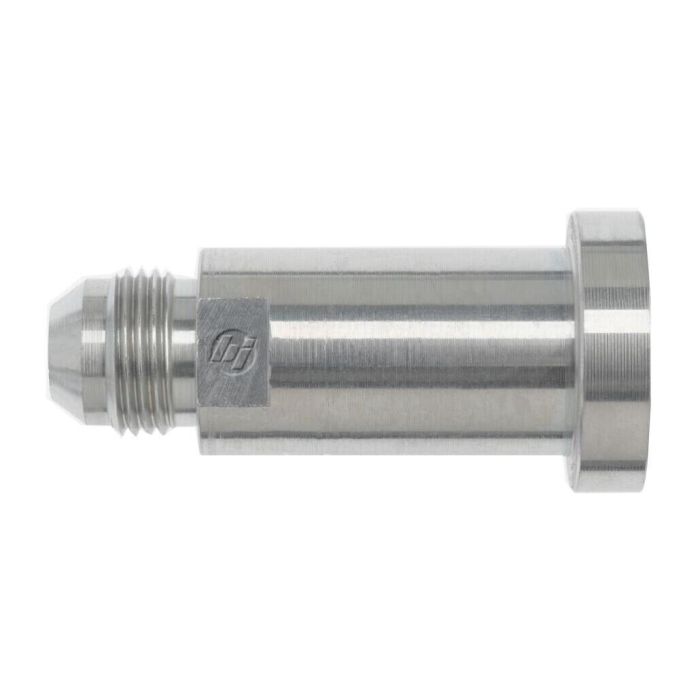

main product photo

16MJ-16FLANGE STRAIGHT CODE

Ask A Question

Description & Features

Designed for straight-run hydraulic connections, the 16MJ-16Flange Straight Code 62 fitting from Brennan Industries pairs a 1-5/16-12 male JIC thread with a 1-inch Code 62 flange port. With an overall length of 2.800 inches and an across-flats measurement of 1.375 inches, this fitting is sized for 1-inch tube OD applications where a compact, inline connection is required.

Code 62 flange fittings are commonly specified in high-pressure hydraulic circuits where split-flange connections are preferred over threaded alternatives. Brennan Industries manufactures this fitting to consistent dimensional standards, making it a reliable choice for system builds and maintenance replacements alike.

SKU: 1800-16-16

Supplier Part Number (MPN): 1800-16-16

Specifications

af Dimensions
1-3/8 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
SAE Code 62 Flange
Dimension Standards
SAE J514, SAE J518
Dimensions
2.8 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-3/8 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Series
1800 Series
Thread Size
1-5/16-12
Tube Outside Diameter
1 in

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Neal C on Oct 9, 2025, 10:56 AM
Is this flange fitting gonna hold up in a high-pressure hydraulic setup?
Answer by: Customer Support on Oct 11, 2025, 7:46 AM
Code 62 flange fittings are frequently chosen for high-pressure hydraulic systems where a split-flange connection is better than a threaded one, so it should be suitable.
Question by: Duane H on Feb 7, 2026, 6:49 AM
trying to swap a fitting out, is this the one that goes from 1-5/16-12 male JIC over to a 1 inch Code 62 flange?
Answer by: Customer Support on Feb 9, 2026, 6:56 AM
For a straight-run connection, it matches that combo: 1-5/16-12 male JIC thread on one end and a 1 inch Code 62 flange port on the other. It is also sized around a 1 inch tube OD application.
