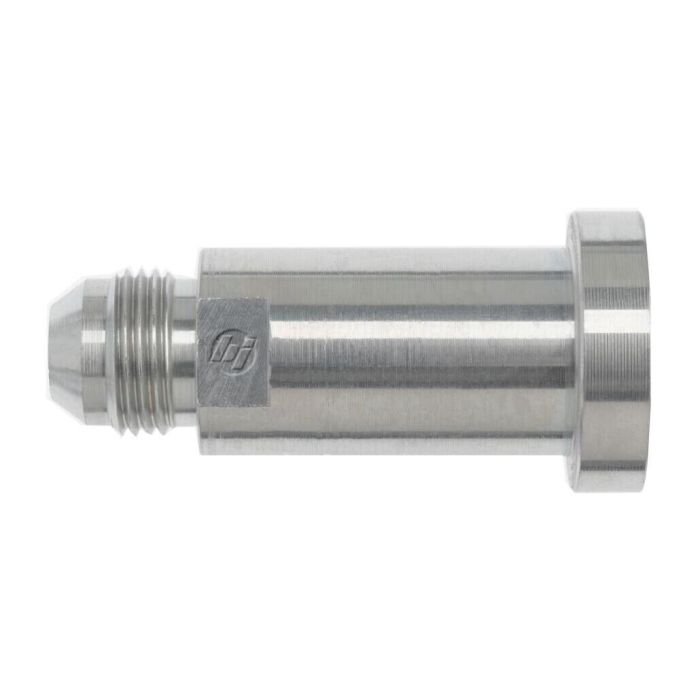

16MJ-20FLANGE STRAIGHT CODE 62

Description & Features

This straight code 62 flange, part number 16MJ-20FLANGE STRAIGHT CODE 62, is part of the 1800 series from Brennan Industries. It features a 1 5/16-12 UN Brennan 1 thread and a 1 1/4 Brennan 2 flange.

The 16MJ-20FLANGE STRAIGHT CODE 62 has a 1 inch tube OD and an AF In measurement of 1 3/8 inches. The L In dimension is 3.05 inches. This fitting is a male connection type.

SKU: 1800-16-20

Supplier Part Number (MPN): 1800-16-20

Alternate Part Numbers: NB6842-16-20

Specifications

af Dimensions 1-3/8 in	Connection Size 1 1 in	Connection Size 2 1-1/4 in	Connection Type Flanged, Male JIC	Connection Type 1 Male SAE 37 deg JIC	Connection Type 2 SAE Code 62 Flange	Dimension Standards SAE J514, SAE J518	Dimensions 3.05 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1-3/8 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 4000 psi	Series 1800 Series	Thread Size 1-5/16-12	Tube Outside Diameter 1 in

Product Questions & Answers (1)

Question by: Terry A on Dec 6, 2025, 9:45 PM

What size tube does this flange fitting work with?

Answer by: Customer Support on Dec 8, 2025, 6:20 AM

This straight code 62 flange fitting is made for a 1 inch outer diameter tube.
