20MJ-16FLANGE 45 CODE 62

Description & Features

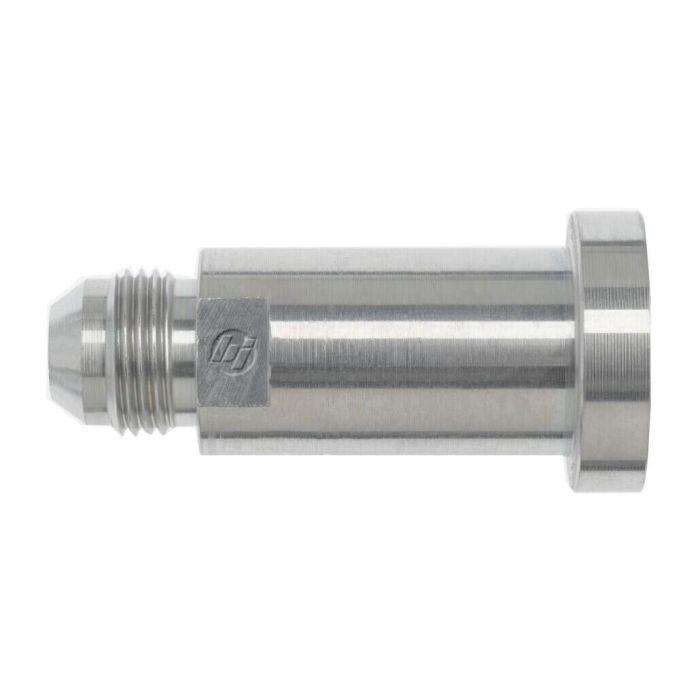

This straight Code 62 flange fitting features a 1-5/8-12 Brennan 1 thread and a 1-1/4 inch tube OD. The 20MJ-16FLANGE 45 CODE 62 offers a reliable connection with an AF dimension of 1.625 inches and an overall length of 2.800 inches.

From Brennan Industries, this fitting is part of the 1800 series and is commonly used in hydraulic applications requiring secure, leak-free connections.

SKU: 1800-20-16

Supplier Part Number (MPN): 1800-20-16

Specifications

af Dimensions 1-5/8 in	Connection Size 1 1-1/4 in	Connection Size 2 1 in	Connection Type Flanged, Male JIC	Connection Type 1 Male SAE 37 deg JIC	Connection Type 2 SAE Code 62 Flange	Dimension Standards SAE J514, SAE J518	Dimensions 3-1/2 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1.688 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 4000 psi	Series 1800 Series	Thread Size 1-5/8-12	Tube Outside Diameter 1-1/4 in

Product Questions & Answers (1)

Question by: Marvin T on Mar 5, 2026, 1:58 PM

Will this flange fitting hold up in a hydraulic system running around 3000 PSI?

Answer by: Customer Support on Mar 7, 2026, 9:36 AM

This fitting is designed for hydraulic applications requiring secure, leak-free connections, so it should work fine.
