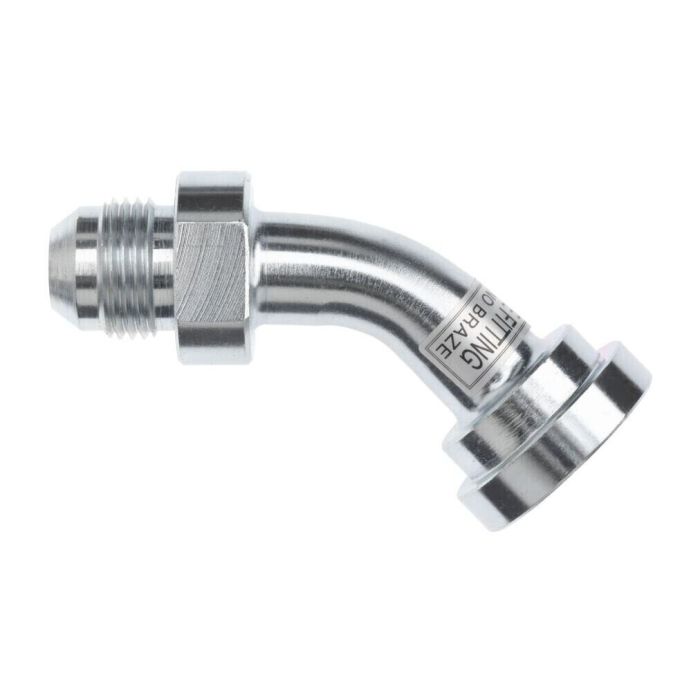

main product photo

CODE 62 FLANGE 45 TO 8 MJIC

Ask A Question

Description & Features

This 45-degree elbow features a Code 62 flange connection to 8 MJIC (Male JIC) configuration, ensuring secure and reliable connections in hydraulic applications. The fitting has a 1/2 inch flange size and a 3/4-16 UNF Brennan 1 thread.

The CODE 62 FLANGE 45 TO 8 MJIC is part of the Brennan 1803 series. Its dimensions include a 7/8 inch Brennan AF In, a 2.76 inch Brennan L1 length, and a 0.94 inch Brennan L2 length. The tube OD is 1/2 inch.

SKU: 1803-08-08

Supplier Part Number (MPN): 1803-08-08

Specifications

af Dimensions
7/8 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
SAE Code 62 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
7/8 in
l1 Dimensions
2.76 in
l2 Dimensions
0.94 in
Material
Steel
Material Construction
S20C Steel
Maximum Operating Pressure
5000 psi
Series
1803 Series
Thread Size
3/4-16
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Phil P on Jan 25, 2026, 8:29 PM
How tight should I make the flange connection on this thing? I don't want to overtighten it and cause any problems.
Answer by: Customer Support on Jan 27, 2026, 8:15 AM
It's designed for a Code 62 flange, so ensure you're using the correct torque specifications for that flange size. The fitting itself has a 1/2 inch flange size and a 3/4-16 UNF Brennan 1 thread, which may have its own torque specs to consider.
