12 MJ X 16 FLANGE 45 CODE 62

Description & Features

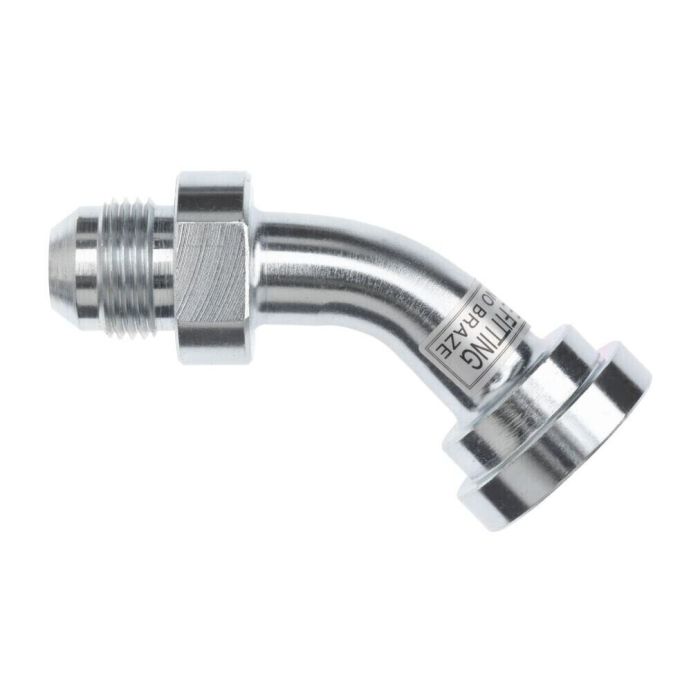

Designed for high-pressure hydraulic systems requiring a directional change at the connection point, the 12 MJ X 16 Flange 45 Code 62 is a 45-degree male JIC-to-flange elbow fitting manufactured by Brennan Industries. It connects a 1 1/16-12 UN male JIC thread to a 1-inch Code 62 SAE flange port, making it well suited for use in compact or confined hydraulic assemblies where a straight connection is not practical.

The fitting accommodates 3/4-inch tube OD and carries an across-flats measurement of 1 1/8 inches. With an overall length of 3.35 inches and a secondary dimension of 1.22 inches, the geometry supports reliable installation in tight routing configurations. The Code 62 flange standard is commonly specified in heavy-duty mobile and industrial hydraulic circuits operating at elevated pressures.

SKU: 1803-12-16

Supplier Part Number (MPN): 1803-12-16

Specifications

af Dimensions 1-1/8 in	Connection Size 1 3/4 in	Connection Size 2 1 in	Connection Type Flanged, Male JIC	Connection Type 1 Male SAE 37 deg JIC	Connection Type 2 SAE Code 62 Flange	Dimension Standards SAE J514, SAE J518	Finish Trivalent Zinc-Plated	Fitting Type 45 deg Elbow	Hex Size 1-1/8 in	l1 Dimensions 3.35 in	l2 Dimensions 1.22 in	Material Steel	Material Construction S20C Steel	Maximum Operating Pressure 5000 psi	Series 1803 Series	Thread Size 1-1/16-12	Tube Outside Diameter 3/4 in

Product Questions & Answers (1)

Question by: Dean P on Feb 11, 2026, 4:08 PM

Is this elbow fitting good for high-pressure applications, like on heavy equipment?

Answer by: Customer Support on Feb 12, 2026, 8:32 PM

Designed for high-pressure hydraulic systems, this 45-degree elbow is well-suited for heavy-duty mobile and industrial circuits operating at elevated pressures, particularly where space is tight.
