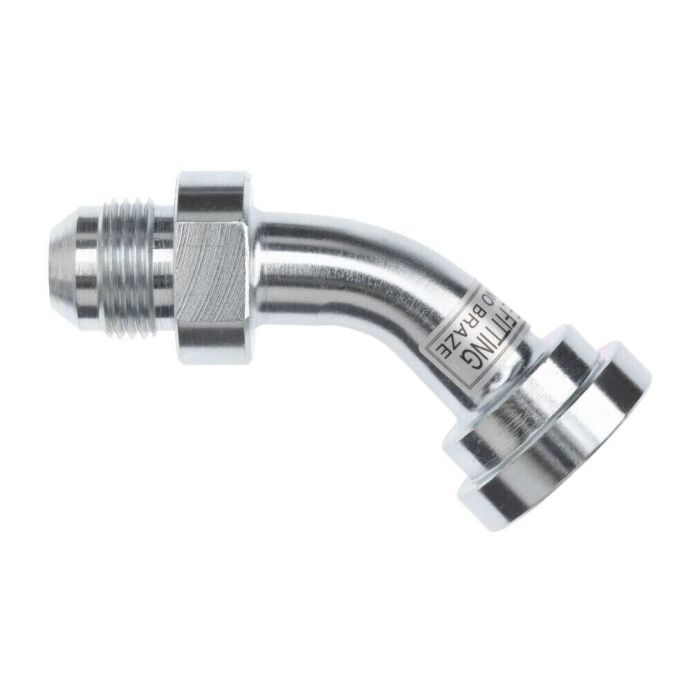

BRENNAN 12MJ-20FLANGE 45 ELBOW CODE 62

Ask A Question

Description & Features

The Brennan 12MJ-20FLANGE 45 ELBOW CODE 62 is a 45-degree elbow featuring a 1-1/16-12 male JIC thread and a 1-1/4 Code 62 flange connection.

This elbow fitting has a 3/4 inch tube OD, a 1.125 inch AF dimension, a 3.75 inch L1 dimension and a 1.62 inch L2 dimension. It belongs to the 1803 series from Brennan Industries.

SKU: 1803-12-20

Supplier Part Number (MPN): 1803-12-20

Specifications

af Dimensions
1-1/8 in
Connection Size 1
3/4 in
Connection Size 2
1-1/4 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
SAE Code 62 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1-1/8 in
l1 Dimensions
3-3/4 in
l2 Dimensions
1.62 in
Material
Steel
Material Construction
S20C Steel
Maximum Operating Pressure
4000 psi
Series
1803 Series
Thread Size
1-1/16-12
Tube Outside Diameter
3/4 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Rod B on Apr 5, 2026, 3:24 PM
Reckon this'll screw right into a standard Code 62 flange? Just wanna make sure before I order a bunch.
Answer by: Customer Support on Apr 7, 2026, 2:39 PM
Absolutely, this elbow fitting features a 1-1/4 Code 62 flange connection, making it compatible with standard Code 62 flanges. It also has a 1-1/16-12 male JIC thread on the other end.
