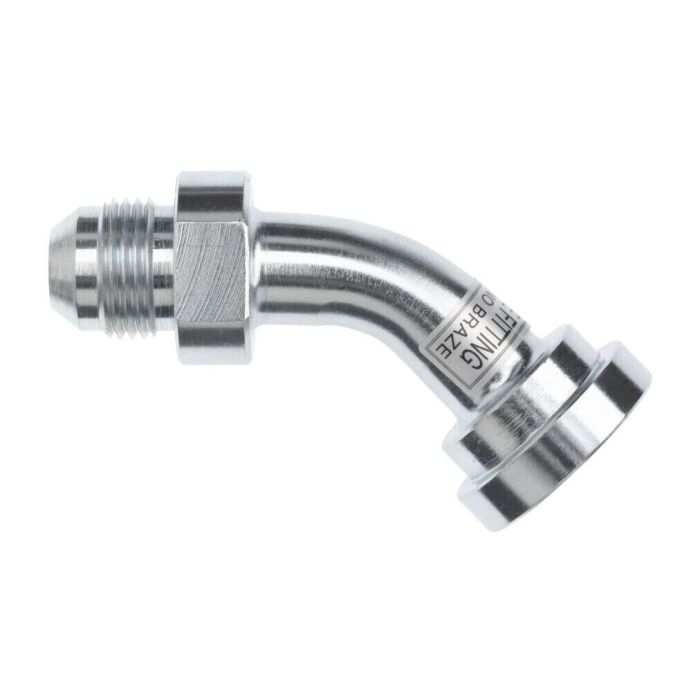

16MJ-12FLANGE 45 DEG ELBOW CODE 62

Description & Features

Designed for use in high-pressure hydraulic systems requiring a directional change in line routing, the 16MJ-12Flange 45 Deg Elbow Code 62 connects a 1 5/16-12 UN male JIC thread to a 3/4 inch Code 62 four-bolt flange at a 45-degree angle. The 1-inch tube O.D. sizing and male end configuration make it well suited for medium-to-large bore hydraulic circuits where angled transitions are needed between components.

Manufactured by Brennan Industries under their 1803 Series, this fitting features an across-flats dimension of 1 3/8 inches. Overall installed length measures 3.46 inches along the primary axis, with a 1.18-inch secondary dimension at the flange end, useful references when planning clearances in tight assemblies.

SKU: 1803-16-12

Supplier Part Number (MPN): 1803-16-12

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1803-16-12	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Brent G on Jul 16, 2025, 5:16 PM

Reckon this elbow fitting'll hold up alright in a hydraulic system running around 3000 PSI? Just wanna make sure before I order a bunch.

Answer by: Customer Support on Jul 18, 2025, 6:16 AM

Constraint-first, this 1803 Series elbow is designed for high-pressure hydraulic systems, so as long as your setup doesn't significantly exceed that pressure, it should perform as expected.
