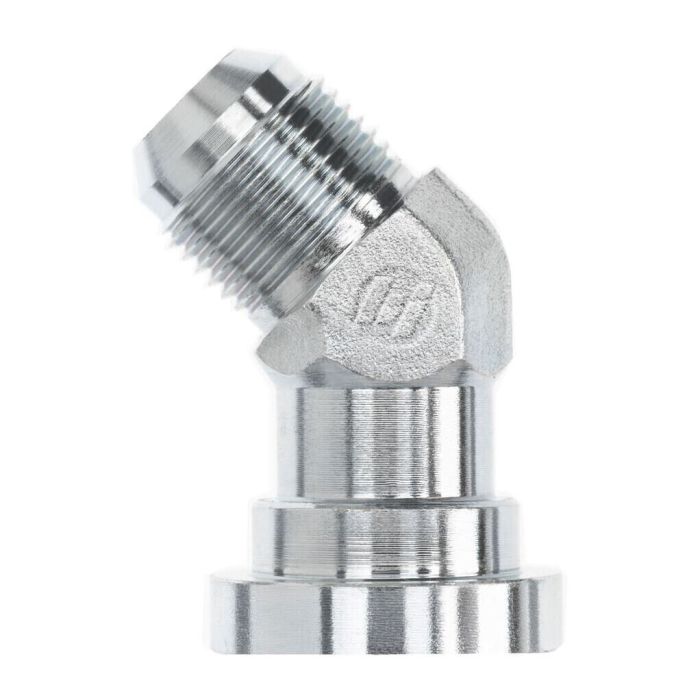

16MJ-16FLANGE 45 ELBOW CODE 62 FORG

Ask A Question

Description & Features

The 16MJ-16FLANGE 45 Elbow Code 62 Forged is expertly designed to ensure reliable performance in demanding hydraulic systems. Featuring a 45-degree elbow angle, it facilitates smooth directional changes in hydraulic lines, minimizing flow resistance. Constructed from robust materials, this forged elbow is built to withstand high-pressure environments, making it ideal for industrial applications.

This product is distinguished by its precise dimensions, including a 1-5/16-12 thread size and a 1-inch flange. With a Brennan tube outer diameter of 1 inch, it ensures compatibility with a variety of hydraulic systems. The elbow is part of the Brennan Series 1803-FG, known for high-quality standards and durability. These features make it a reliable choice for professionals seeking efficiency and strength in hydraulic connections.

SKU: 1803-16-16-FG

Supplier Part Number (MPN): 1803-16-16-FG

Specifications

af Dimensions
1.312 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
SAE Code 62 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1.312 in
l1 Dimensions
1.47 in
l2 Dimensions
1.85 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Series
1803-FG Series
Thread Size
1-5/16-12
Tube Outside Diameter
1 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Daryl A on Feb 14, 2026, 2:00 PM
What size thread does this thing have?
Answer by: Customer Support on Feb 15, 2026, 4:52 PM
The thread size is 1-5/16-12.
