16MJ-20FLANGE 45 ELBOW CODE 62

Ask A Question

Description & Features

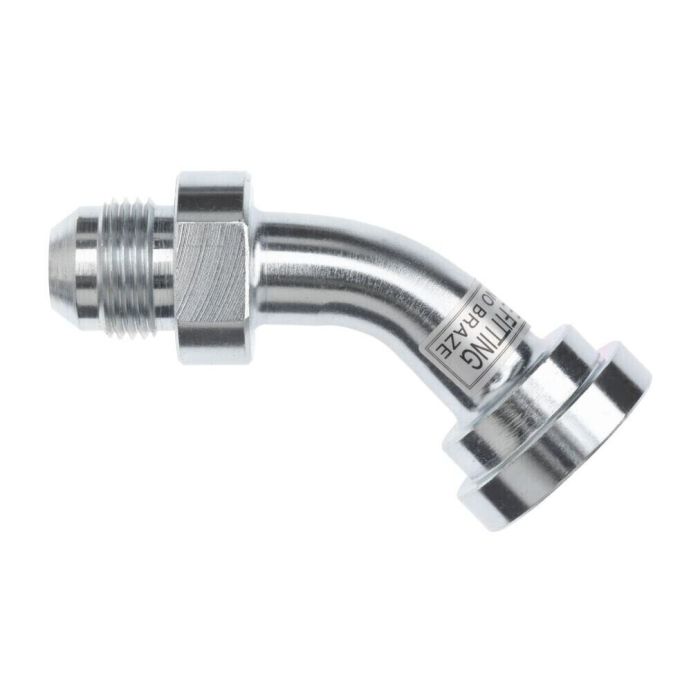

Designed for high-pressure hydraulic tube connections, this 45-degree elbow fitting routes a 1-inch OD tube line to a Code 62 four-bolt flange port in applications where a straight connection is not practical. The male JIC end features a 1 5/16-12 UN thread, while the flange end accepts a 1-1/4 inch Code 62 connection, a common pairing in mobile and industrial hydraulic circuits.

The 16MJ-20FLANGE 45 ELBOW CODE 62 is manufactured by Brennan Industries and belongs to the 1803 series. With an across-flat measurement of 1-3/8 inches and overall dimensions of 3.98 inches (L1) by 1.50 inches (L2), the fitting is sized for mid-range hydraulic line assemblies where reliable tube-to-flange transitions are required.

SKU: 1803-16-20

Supplier Part Number (MPN): 1803-16-20

Specifications

af Dimensions
1-3/8 in
Connection Size 1
1 in
Connection Size 2
1-1/4 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
SAE Code 62 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1-3/8 in
l1 Dimensions
3.98 in
l2 Dimensions
1-1/2 in
Material
Steel
Material Construction
S20C Steel
Maximum Operating Pressure
4000 psi
Series
1803 Series
Thread Size
1-5/16-12
Tube Outside Diameter
1 in
