BRENNAN 20MJ-12FLANGE 45 ELBOW CODE 62

Description & Features

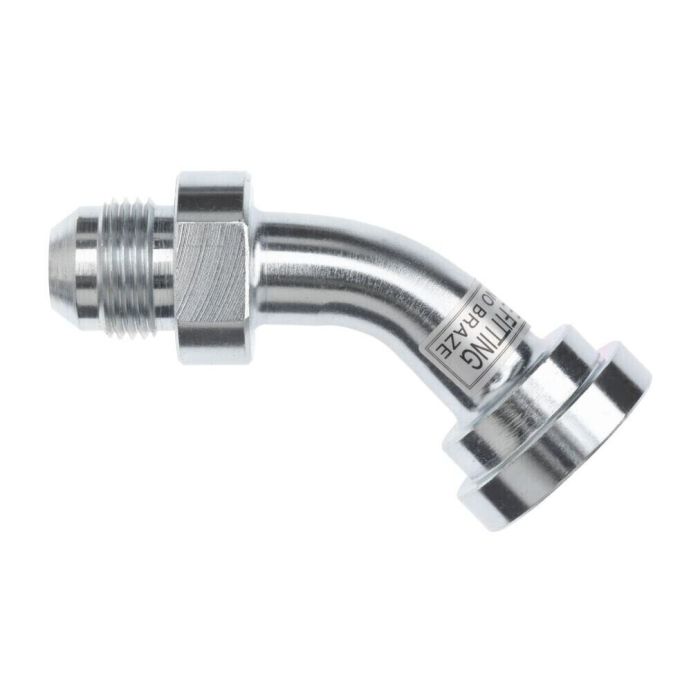

This Brennan 20MJ-12FLANGE 45 Elbow Code 62 is a hydraulic fitting with a 3/4 flange.

The Brennan 1 thread size is 1-5/8-12 UN, with an AF dimension of 1 1/2 inches. This elbow features a 1 1/4 inch tube OD and L1 and L2 lengths of 4.13 inches and 1.42 inches respectively.

SKU: 1803-20-12

Supplier Part Number (MPN): 1803-20-12

Specifications

af Dimensions 1-1/2 in	Connection Size 1 1-1/4 in	Connection Size 2 3/4 in	Connection Type Flanged, Male JIC	Connection Type 1 Male SAE 37 deg JIC	Connection Type 2 SAE Code 62 Flange	Dimension Standards SAE J514, SAE J518	Finish Trivalent Zinc-Plated	Fitting Type 45 deg Elbow	Hex Size 1-1/2 in	l1 Dimensions 4.13 in	l2 Dimensions 1.42 in	Material Steel	Material Construction S20C Steel	Maximum Operating Pressure 4000 psi	Series 1803 Series	Thread Size 1-5/8-12	Tube Outside Diameter 1-1/4 in

Product Questions & Answers (1)

Question by: Todd W on Aug 18, 2025, 7:31 AM

Will this fitting work with a standard 1 1/4 inch tube?

Answer by: Customer Support on Aug 20, 2025, 6:38 AM

This elbow fitting is made to work with a 1 1/4 inch OD tube, yes.
