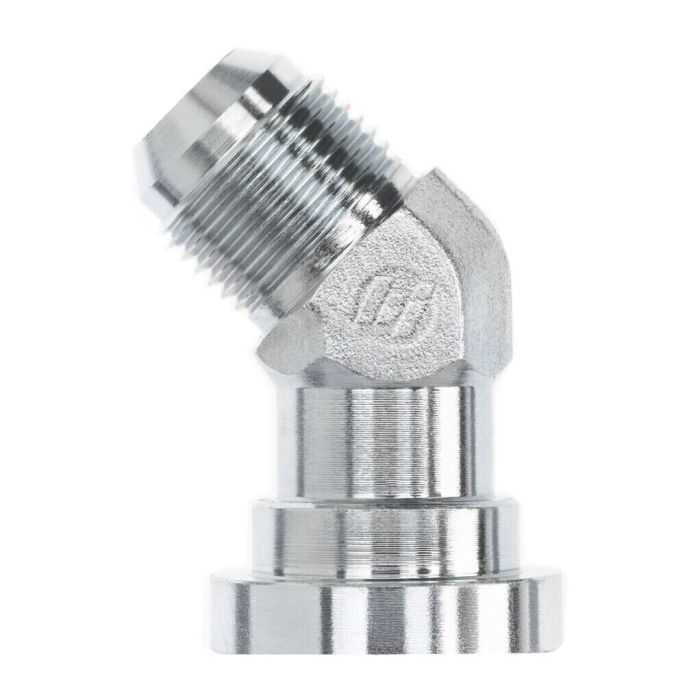

20MJ-20FLANGE 45 ELBOW CODE 62 FG

Ask A Question

Description & Features

Designed for robust industrial applications, the 45-degree elbow fitting is a critical component for hydraulic systems demanding high-reliability connections. With a Brennan 1 Thread size of 1-5/8-12 and a Brennan 2 Flange of 1-1/4 inches, it provides a secure and leak-resistant joint. The forged construction ensures durability and longevity, making it suitable for demanding environments.

This fitting belongs to the Brennan Series 1803-FG, known for its precision engineering and compatibility with various hydraulic systems. With dimensions of Brennan L1 at 1.590 inches and Brennan L2 at 2.040 inches, it offers an optimal balance of size and function. The 20MJ-20FLANGE 45 ELBOW CODE 62 FG is ideal for systems requiring efficient flow and reliable performance.

SKU: 1803-20-20-FG

Supplier Part Number (MPN): 1803-20-20-FG

Specifications

af Dimensions
1-5/8 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
SAE Code 62 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1-5/8
l1 Dimensions
1.59 in
l2 Dimensions
2.04 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4000 psi
Series
1803-FG Series
Thread Size
1-5/8-12
Tube Outside Diameter
1-1/4 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Tony C on Apr 5, 2026, 4:27 PM
What size wrench do I need for the fitting end?
Answer by: Customer Support on Apr 7, 2026, 6:30 AM
Based on the specs, you'll need a 1.625 inch wrench for the "Brennan Af In" part of this elbow fitting.
