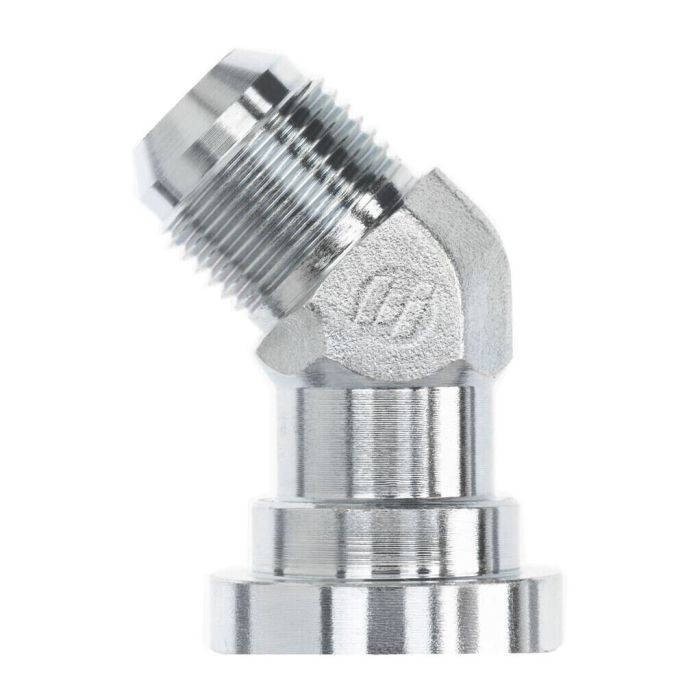

main product photo

BRENNAN CODE 62 SPLIT FLANGE / MALE 37FL

Ask A Question

Description & Features

This Brennan Industries fitting is a Code 62 split flange to male 37-degree flare elbow. The BRENNAN CODE 62 SPLIT FLANGE / MALE 37FL features a 1 7/8-12 UN Brennan 1 thread, a 1 1/2 inch Brennan 2 flange, and a 1 1/2 inch tube O.D.

This 1803-FG series fitting has a 1 7/8 inch Brennan AF In, a 1.780 inch Brennan L1 In, and a 2.380 inch Brennan L2 In.

SKU: 1803-24-24-FG

Supplier Part Number (MPN): 1803-24-24-FG

Alternate Part Numbers: 1803-2424, C1FM83

Specifications

af Dimensions
1-7/8 in
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
SAE Code 62 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1-7/8 in
l1 Dimensions
1.78 in
l2 Dimensions
2.38 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
1803-FG Series
Thread Size
1-7/8-12
Tube Outside Diameter
1-1/2 in

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Lynn B on Feb 10, 2026, 10:52 AM
Got a 1 1/2 inch tube line I'm trying to transition into a Code 62 flange connection at a 45 degree angle. This the right fitting for that?
Answer by: Customer Support on Feb 11, 2026, 8:38 PM
For a 1 1/2 inch tube OD running into a Code 62 split flange port at a 45 degree offset, yes, that's exactly what this fitting covers. The male 37 degree flare end threads up at 1 7/8-12 UN, and the flange side is sized for a 1 1/2 inch Code 62 connection. The 45 degree elbow geometry handles the directional change right at the port, which keeps things cleaner than trying to bend tubing that close to a flange face.
Question by: Daryl Y on Feb 10, 2026, 3:18 PM
Will this fitting work with standard JIC fittings?
Answer by: Customer Support on Feb 11, 2026, 3:56 PM
Designed with a 37-degree male flare, this fitting is compatible with standard JIC connections.
Question by: Norm H on Feb 13, 2026, 4:16 PM
trying to match up a 1803-2424 elbow i already got, is this the same part just with the newer number?
Answer by: Customer Support on Feb 15, 2026, 1:16 PM
The old SKU 1803-2424 cross references to this part number 1803-24-24-FG, and it is a 45 degree forged elbow in the Brennan 1803-FG series with a Code 62 split flange on one end and a male 37 flare on the other.
