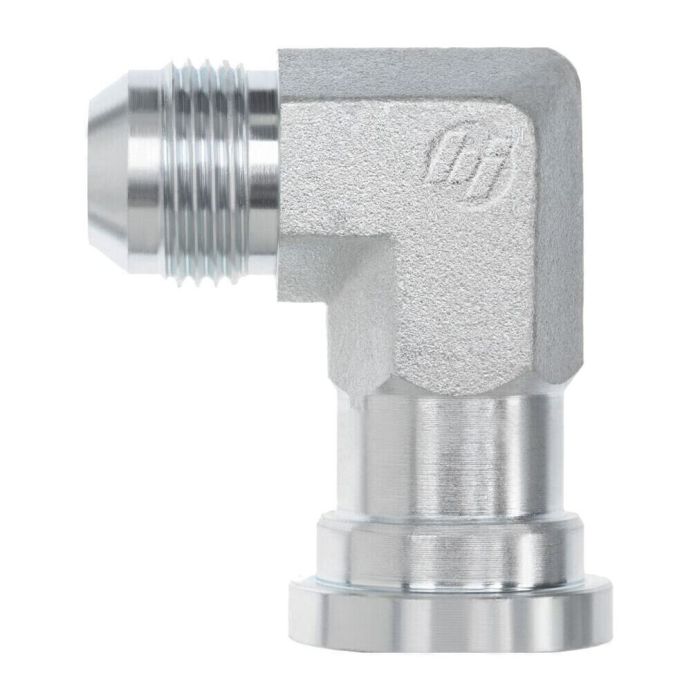

12MJ-12FLANGE 90 ELBOW CODE 62

Ask A Question

Description & Features

This 12MJ-12FLANGE 90-degree elbow features a Code 62 forged design. It connects with a 1-1/16-12 Brennan 1 thread and a 3/4 Brennan 2 flange.

This elbow fitting, part of the 1804-FG series, has a 3/4 inch tube OD, an AF In measurement of 1.062 inches, an L1 In length of 1.660 inches, and an L2 In length of 2.130 inches.

SKU: 1804-12-12-FG

Supplier Part Number (MPN): 1804-12-12-FG

Specifications

af Dimensions
1.062 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
SAE Code 62 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.06 in
l1 Dimensions
1.66 in
l2 Dimensions
2.13 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Series
1804-FG Series
Thread Size
1-1/16-12
Tube Outside Diameter
3/4 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Freddie R on Jun 2, 2025, 9:27 AM
Will this elbow fit a standard 3/4 inch tube?
Answer by: Customer Support on Jun 4, 2025, 6:49 AM
It sure will. This elbow is designed for use with a 3/4 inch OD tube.
