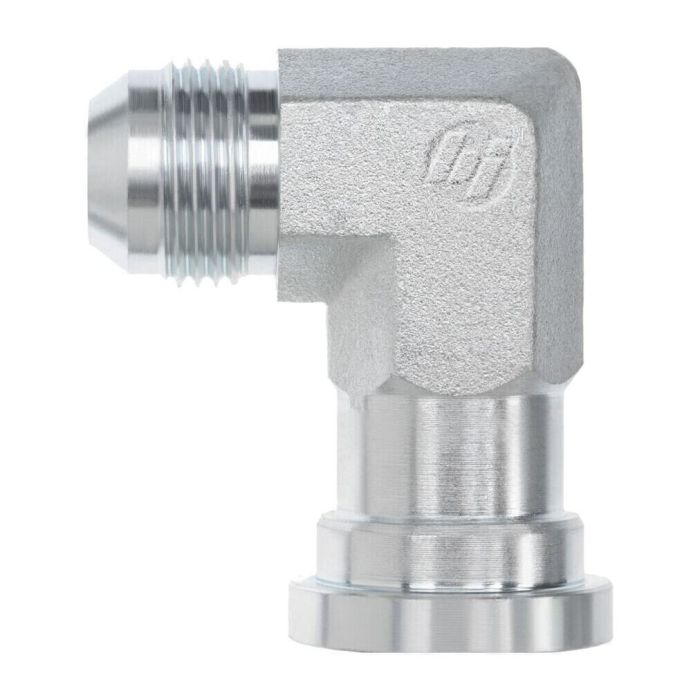

16MJ-20FLANGE 90 ELBOW CODE 62 FORG

Ask A Question

Description & Features

This forged 90-degree elbow features a 1 5/16-12 UN Brennan 1 thread and a 1 1/4 Brennan 2 flange, designed for robust hydraulic applications. The 16MJ-20FLANGE 90 ELBOW CODE 62 FORG ensures a secure and reliable connection in demanding environments.

With a 1 5/16-inch Brennan AF In and a 1-inch tube OD, this fitting is part of the 1804-FG Brennan series. It offers precise dimensions, with a 2.06-inch Brennan L1 length and a 2.76-inch Brennan L2 length.

SKU: 1804-16-20-FG

Supplier Part Number (MPN): 1804-16-20-FG

Specifications

af Dimensions
1-5/16 in
Connection Size 1
1 in
Connection Size 2
1-1/4 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
SAE Code 62 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.312 in
l1 Dimensions
2.06 in
l2 Dimensions
2.76 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4000 psi
Series
1804-FG Series
Thread Size
1-5/16-12
Tube Outside Diameter
1 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Gene M on Oct 5, 2025, 8:43 PM
Is that 1 inch tube OD the outside diameter, or something else?
Answer by: Customer Support on Oct 7, 2025, 2:33 PM
That 1-inch measurement refers to the tube's outer diameter. This elbow fitting is designed to work with a 1-inch OD tube.
