JIC X CODE 62 ADAPTER

Description & Features

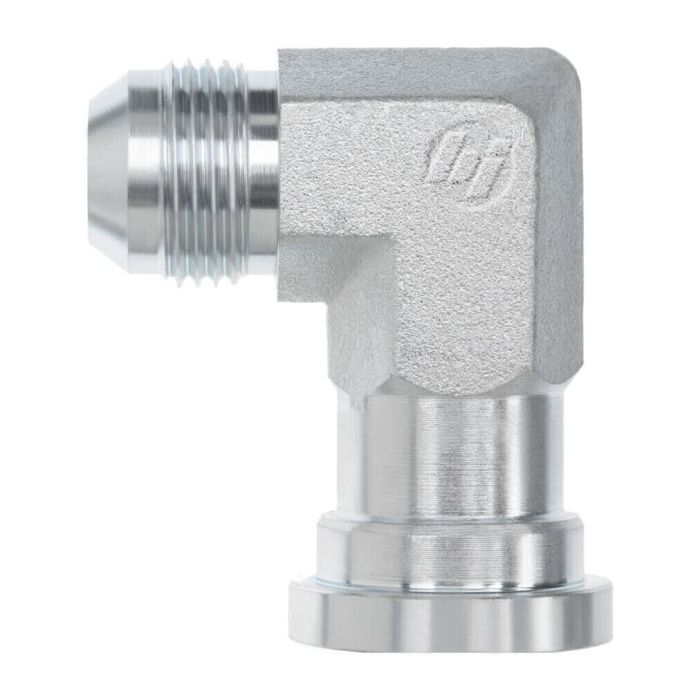

A forged 90-degree elbow adapter connecting a 1-5/8-12 (1-1/4" tube OD) JIC male fitting to a 1" Code 62 flange, this JIC x Code 62 Adapter from Brennan Industries is built for high-pressure hydraulic systems requiring a right-angle transition between JIC and four-bolt flange connections. The forged construction provides the structural integrity expected in demanding hydraulic circuit applications.

Part of Brennan's 1804-FG series, the adapter measures 2.060" along the JIC thread axis and 2.760" along the flange axis, making it well suited for routing hydraulic lines where space constraints require a directional change at the connection point. The 1" Code 62 flange face is compatible with SAE J518 Code 62 high-pressure flange standards.

SKU: 1804-20-16-FG

Supplier Part Number (MPN): 1804-20-16-FG

Alternate Part Numbers: 1804-20-16

Specifications

af Dimensions 1-5/8 in	Connection Size 1 1-1/4 in	Connection Size 2 1 in	Connection Type Flanged, Male JIC	Connection Type 1 Male SAE 37 deg JIC	Connection Type 2 SAE Code 62 Flange	Dimension Standards SAE J514, SAE J518	Finish Trivalent Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 1-5/8	l1 Dimensions 2.06 in	l2 Dimensions 2.76 in	Material Steel	Material Construction AISI C1045 Steel	Maximum Operating Pressure 4000 psi	Series 1804-FG Series	Thread Size 1-5/8-12	Tube Outside Diameter 1-1/4 in

Product Questions & Answers (1)

Question by: Shawn S on Dec 4, 2025, 10:23 AM

I need a 90-degree elbow to hook up a JIC fitting to a Code 62 flange. Is that what this is for?

Answer by: Customer Support on Dec 5, 2025, 9:53 PM

Precisely. This 90-degree elbow adapter is designed to connect a 1-5/8-12 JIC male fitting to a 1" Code 62 flange. It's built for hydraulic systems needing a right-angle transition.
