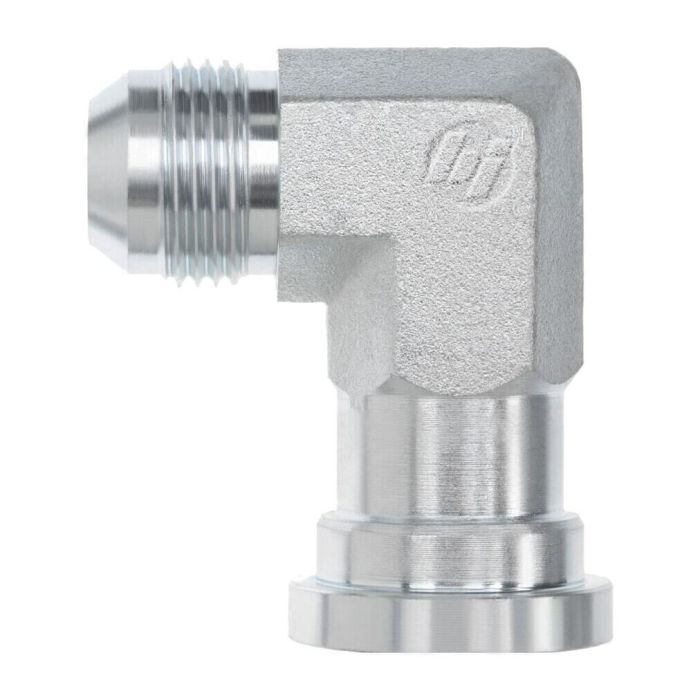

BRENNAN FLANGE 90 ELBOW

Ask A Question

Description & Features

Designed for robust hydraulic applications, the Brennan Flange 90 Elbow is engineered to meet the demanding requirements of industrial systems. This flange elbow features a 90-degree angle and is part of the Code 62 series, making it ideal for high-pressure settings. The elbow connects with a 1 7/8-12 UN thread and a 1 1/4-inch flange, providing a secure and reliable connection.

Constructed from forged materials, this elbow ensures durability and longevity. With a tube outer diameter of 1 1/2 inches, it supports efficient fluid flow. The dimensions include a Brennan L1 of 2.19 inches and a Brennan L2 of 2.76 inches, allowing for precise fitting in complex hydraulic assemblies. This product is manufactured by Brennan Industries, a trusted name in hydraulic fittings.

SKU: 1804-24-20-FG

Supplier Part Number (MPN): 1804-24-20-FG

Specifications

af Dimensions
1-5/8 in
Connection Size 1
1-1/2 in
Connection Size 2
1-1/4 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
SAE Code 62 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-7/8 in
l1 Dimensions
2.19 in
l2 Dimensions
2.76 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
1804-FG Series
Thread Size
1-7/8-12
Tube Outside Diameter
1-1/2 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Ricky B on Mar 14, 2026, 11:12 AM
Reckon this'll hold up in a high-pressure hydraulic system? I'm talkin' near its max.
Answer by: Customer Support on Mar 16, 2026, 6:42 AM
Designed for demanding industrial use, this Brennan flange elbow is part of the Code 62 series, which means it's made to handle high-pressure settings.
