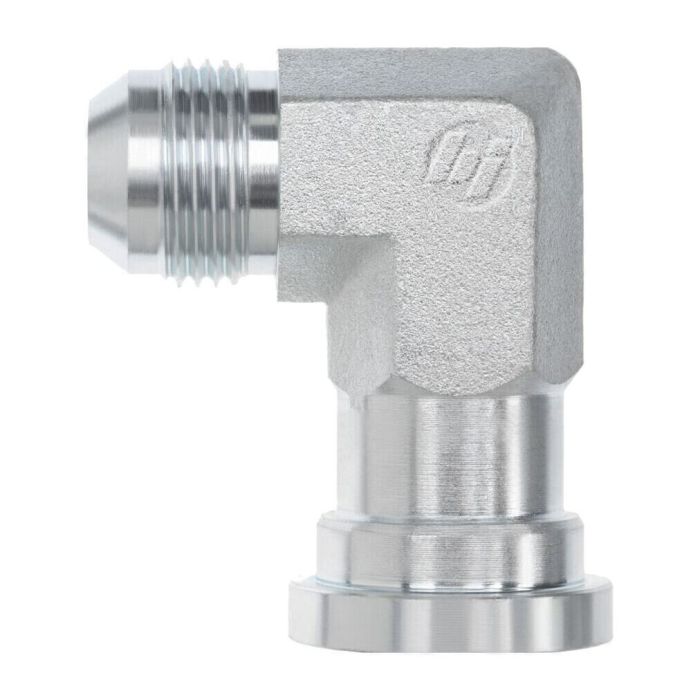

main product photo

24MJ-32FLANGE 90 ELBOW CODE 62 FORGED

Ask A Question

Description & Features

This forged 90-degree elbow features a 24MJ-32FLANGE connection and a Code 62 flange, offering a robust solution for hydraulic applications. It incorporates a 1-7/8-12 Brennan 1 thread and a 2-inch Brennan 2 flange.

The elbow, part of the 1804-FG series from Brennan Industries, has an AF In dimension of 2.500 inches, an L1 In dimension of 3.060 inches, and an L2 In dimension of 4.250 inches. Designed for a 1-1/2 inch tube OD, this component ensures reliable performance in demanding environments.

SKU: 1804-24-32-FG

Supplier Part Number (MPN): 1804-24-32-FG

Specifications

af Dimensions
2-1/2 in
Connection Size 1
1-1/2 in
Connection Size 2
2 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
SAE Code 62 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-7/8 in
l1 Dimensions
3.06 in
l2 Dimensions
4-1/4 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
1804-FG Series
Thread Size
1-7/8-12
Tube Outside Diameter
1-1/2 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Shawn D on Nov 5, 2025, 12:43 PM
What size tube does this elbow work with?
Answer by: Customer Support on Nov 7, 2025, 7:52 AM
This elbow is designed for use with a 1-1/2 inch outside diameter tube.
