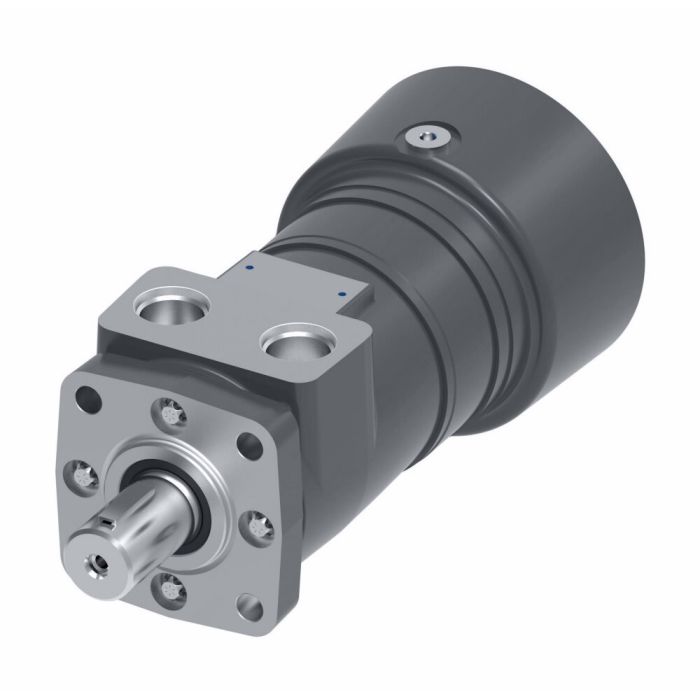

T-MOTOR BRAKE

Ask A Question

Description & Features

This T-MOTOR BRAKE is a robust hydraulic component designed for demanding applications, including truck-mounted equipment, fishing winches, and vehicle recovery winches.

Constructed from durable ductile iron, this Char-Lynn T Series motor offers a torque rating of 430 newton metres. It features an extended bearing life and an increased shaft seal, ensuring reliable performance. Its compact design does not compromise power, delivering a flow rate of 57 liters per minute.

SKU: 185-2089

Supplier Part Number (MPN): 185-2089-002

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Brake Release Port Dimension
7/16 - 20 UNF-2B SAE O-ring
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
2
Dimensions
11.61 in L x 3.46 in W x 3.38 in H
Frame Size
370
Housing Material
Iron
Mounting Type
4-Bolt Square Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
T Series
Shaft Size
1 in Dia
Shaft Type
Splined
Valve Type
Spool

Product Questions & Answers (1)

Question by: Chad W on Jan 13, 2026, 7:40 PM
Will this motor work on my vehicle recovery winch, or is it designed for something else?
Answer by: Customer Support on Jan 15, 2026, 12:01 PM
It’s definitely suitable for vehicle recovery winches. This T-Motor Brake is also used in truck-mounted equipment and fishing winches.
