AEROQUIP REUSABLE - CODE

Description & Features

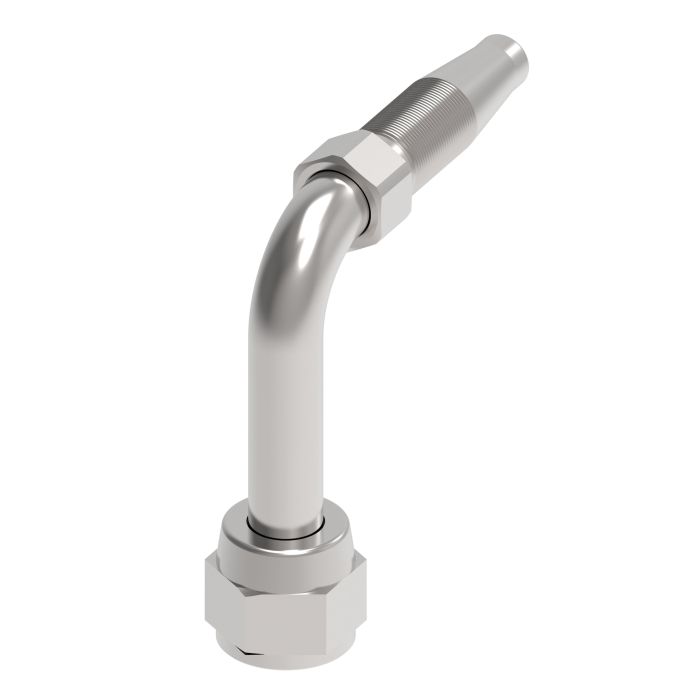

Designed for versatility and reliability, the Aeroquip Reusable - Code hose fitting is an essential component for a wide range of industrial applications. Constructed from durable carbon steel, this fitting ensures long-term performance and dependability. It features a female SAE 37-degree swivel on one end and a male UNEF connection on the other, making it adaptable to various system requirements.

The fitting is engineered to cut assembly times and boost production efficiency, making it a valuable addition to any industrial setup. The product's compact design, with a drop dimension of 5.5300 inches and a hex size of 1.38 inches, allows for easy integration into existing systems. This Aeroquip fitting is part of the 185260 series and is recognized for its robust construction and reliable performance under demanding conditions.

SKU: 185260-20S

Supplier Part Number (MPN): 185260-20S

Specifications

a Dimensions 4 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Reusable	Cut-Off Factor 2-1/4 in	Dimensions 1.05 in ID	Drop Dimensions 5.53 in	End Connection Torque 125 to 135 lb-ft	End Gender 1 Female	End Gender 2 Male	End Size 1 20	End Size 2 16	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With 1503 Series Hoses	Hex Size 1-3/8 in	Hose Dash Size 20	Inside Diameter 1.05 in	Material Steel	Material Construction Carbon Steel	Series 185260 Series	Thread Sealant Without Thread Sealant	Thread Size 1-5/8-12	Thread Type UN

Product Questions & Answers (3)

Question by: Ricky T on May 15, 2025, 1:12 PM

What kind of stuff can I hook this fitting up to?

Answer by: Customer Support on May 17, 2025, 11:41 AM

This Aeroquip fitting is designed for a wide range of industrial applications, providing versatility and reliable performance.

Question by: Harvey W on Jun 16, 2025, 5:42 PM

trying to swap out a fitting on a -20 hose, is this 185260-20S the reusable one that matches that dash size?

Answer by: Customer Support on Jun 18, 2025, 1:32 PM

For a -20 hose, this part is set up for that size. The hose dash size is listed as -20, and it is a reusable nipple assembly in the Aeroquip 185260 series.

Question by: Kent C on Feb 17, 2026, 9:05 PM

What kinda connection ends does this fitting have on each side, and will it work with standard SAE fittings?

Answer by: Customer Support on Feb 19, 2026, 3:21 PM

One end is a female SAE 37-degree swivel and the other is a male UNEF thread. The swivel end is compatible with standard SAE 37-degree connections, which are pretty common across a lot of hydraulic and industrial setups. Just make sure your mating fittings match those thread types on both sides before you put it in service.
