Aeroquip Reusable FTGS - Code

Description & Features

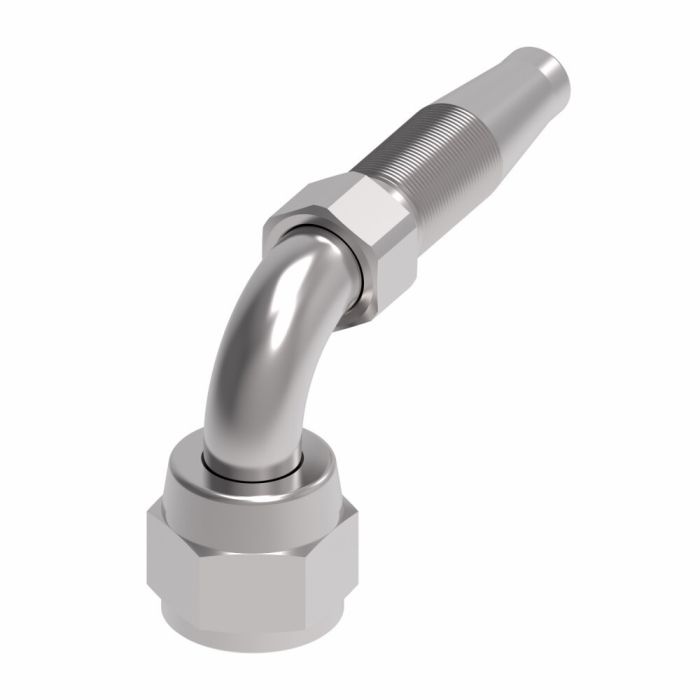

This carbon steel nipple assembly is designed for SAE 37-degree swivel connections, with a -12 hose dash size and a female SAE 37 end mating to a male UNS end with a 0.88 hex size. Built for reusable installation, it supports faster assembly and repeated field use without sacrificing connection integrity.

The Aeroquip Reusable Ftgs - Code fits a wide range of hydraulic hose applications and is suited to environments where reliable, consistent performance is required across assembly cycles. Carbon steel construction provides durability in demanding industrial settings, and the swivel end design accommodates installation flexibility. The 1.25-inch product width and 1.82-inch drop dimension make it compatible with standard routing configurations where space and alignment are factors.

SKU: 185261-12S

Supplier Part Number (MPN): 185261-12S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.72 in	Compatible Hose ID 3/4 in	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Reusable	Cut-Off Factor 2.2 in	Dimensions 4.34 in L x 1.25 in W x 2.83 in H	Drop Dimensions 1.82 in	End Connection Torque 79 to 87 lb-ft	End Gender 1 Female	End Gender 2 Male	End Size 1 12	End Size 2 13/16 in	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With 1503 Series Hoses	Hex Size 7/8 x 1-1/4 in	Hose Dash Size 12	Inside Diameter 0.55 in	Material Steel	Material Construction Carbon Steel	Operating Temperature -40	Series 185261 Series	Thread Sealant Without Thread Sealant	Thread Size 1-1/16-12	Thread Type UN
