Aeroquip Reusable FTGS - Code

Description & Features

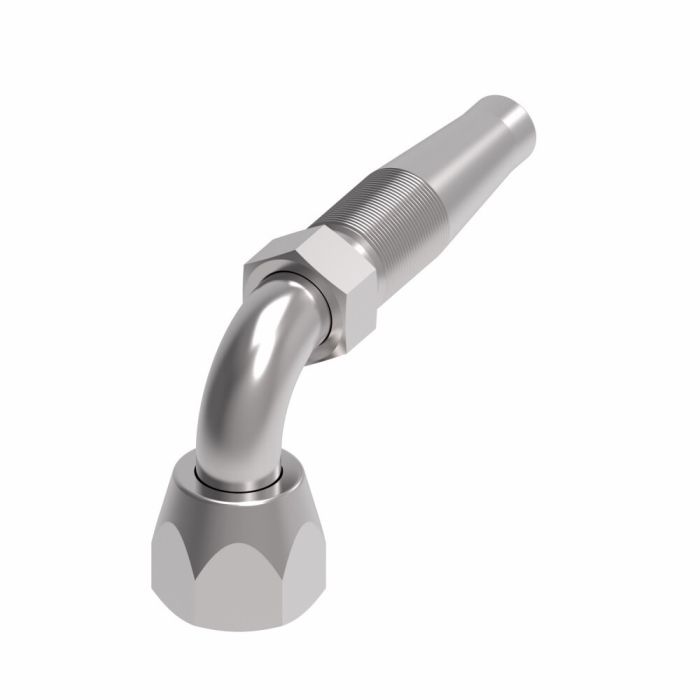

This Aeroquip Reusable FTGS features a female SAE 37-degree swivel end and a male UNF end, facilitating secure and adaptable connections in hydraulic applications.

Constructed from carbon steel, this nipple assembly offers durability and dependability across a wide range of applications. The fitting has a -8 hose dash size, a 0.75 end size 1, and a 0.625 end size 2. It is designed to cut assembly times and boost production efficiency.

SKU: 185264-8S

Supplier Part Number (MPN): 185264-8S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.07 in	Compatible Hose ID 1/2 in	Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Reusable	Cut-Off Factor 1.98 in	Dimensions 3.07 in L x 0.88 in W x 1.43 in H	Drop Dimensions 1.08 in	End Connection Torque 38 to 42 lb-ft	End Gender 1 Female	End Gender 2 Male	End Size 1 3/4 in	End Size 2 5/8 in	Finish Dura-Kote™	Fitting Type 90 deg Elbow	Hex Size 17.46 mm	Hose Dash Size 08	Inside Diameter 0.39 in	Material Steel	Material Construction Carbon Steel	Series 185264 Series	Thread Sealant Without Thread Sealant	Thread Size 3/4-16	Thread Type UNF

Similar Products

Model Number	Connection Size 1	Connection Size 2	Hose Dash Size
185264-4S	1/4 in	1/4 in	04
185264-6S	3/8 in	3/8 in	06
185264-8-6S	1/2 in	3/8 in	06
185264-10-8S	5/8 in	1/2 in	08
185264-10S	5/8 in	5/8 in	10
185264-12S	3/4 in	3/4 in	12
185264-16S	1 in	1 in	16
