Aeroquip Reusable FTGS - Code

Description & Features

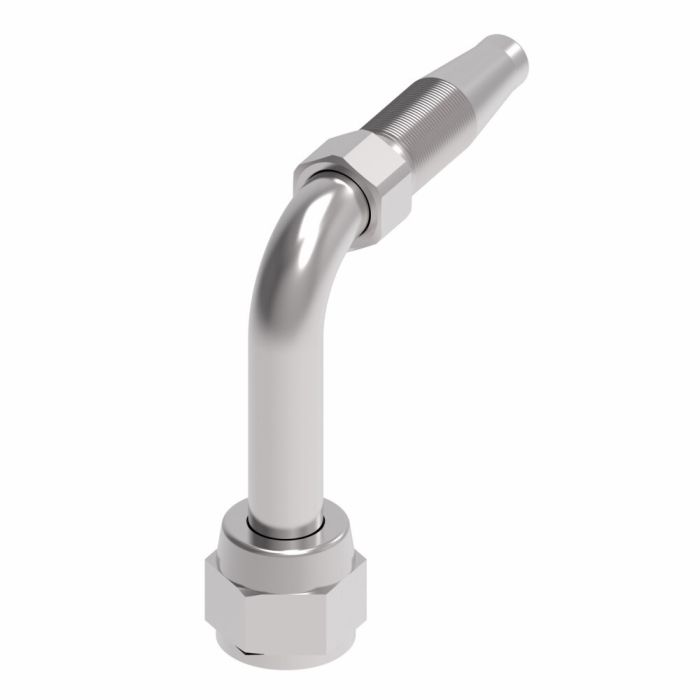

Constructed from carbon steel, this SAE 37° swivel nipple assembly is designed for use with -10 dash size hose and connects a female SAE 37° end (0.875 in.) to a male UNEF thread end (0.6875 in.). The 1-inch hex size on the second end aids in installation, and a drop dimension of 2.57 inches accommodates routing in tight or angled configurations.

The Aeroquip Reusable Ftgs - Code fitting is a reusable design, making it well-suited for applications where hose replacement frequency or field servicing is a consideration. Reusable construction reduces assembly downtime and supports efficient hose rebuilding without sacrificing connection integrity. With a package weight of 0.31 lb, it is a compact, practical component for mobile or stationary hydraulic hose assemblies across a wide range of industrial applications.

SKU: 185295-10S

Supplier Part Number (MPN): 185295-10S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.18 in	Compatible Hose ID 0.62 in	Connection Size 1 5/8 in	Connection Size 2 5/8 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Reusable	Cut-Off Factor 1.38 in	Dimensions 3.68 in L x 1 in W x 2.94 in H	Drop Dimensions 2.57 in	End Connection Torque 57 to 62 lb-ft	End Gender 1 Female	End Gender 2 Male	End Size 1 7/8 in	End Size 2 11/16 in	Finish Zinc-Plated	Fitting Type 90 deg Elbow	For Use With 1503 Series Hoses	Hex Size 1 x 3/4 in	Hose Dash Size 10	Inside Diameter 0.46 in	Material Steel	Material Construction Carbon Steel	Series 185295 Series	Thread Sealant Without Thread Sealant	Thread Size 7/8-14	Thread Type UNF

Product Questions & Answers (1)

Question by: Steve F on Apr 8, 2025, 8:58 PM

What kind of hoses work with this fitting?

Answer by: Customer Support on Apr 10, 2025, 8:37 AM

This fitting is designed for use with -10 dash size hose.
