Aeroquip Reusable FTGS - Code

Description & Features

This Aeroquip Reusable FTGS is suitable for a wide range of applications where durable, dependable performance is required. The reusable design cuts assembly times and boosts production.

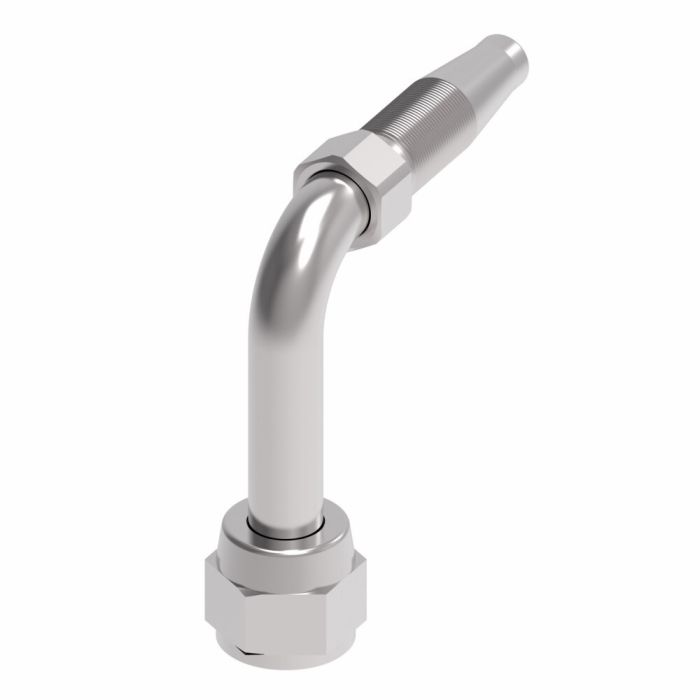

Constructed from carbon steel, this nipple assembly features a female SAE 37 end with a 0.5 end size and a line/hose/tube end type. It has a drop dimension of 1.7700 and a product width of 0.62. The hex size 2 is 0.44 and the hose dash size is -5.

SKU: 185295-5S

Supplier Part Number (MPN): 185295-5S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 1.96 in	Compatible Hose ID 0.31 in	Connection Size 1 5/16 in	Connection Size 2 5/16 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female 37 deg Swivel	Construction Style Reusable	Cut-Off Factor 3/4 in	Dimensions 0.18 in ID	Drop Dimensions 1.77 in	End Connection Torque 14 to 16 lb-ft	End Gender 1 Female	End Size 1 1/2 in	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With 1503 Series Hoses	Hex Size 0.62 x 0.44 in	Hose Dash Size 05	Inside Diameter 0.18 in	Material Steel	Material Construction Carbon Steel	Series 185295 Series	Thread Sealant Without Thread Sealant	Thread Size 1/2-20	Thread Type UNF

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Type 2	Hose Dash Size
185295-4S	1/4 in	1/4 in	Female SAE 37 deg JIC Swivel	04
185295-8S	1/2 in	1/2 in	Female SAE 37 deg JIC Swivel	08
185295-10S	5/8 in	5/8 in	Female SAE 37 deg JIC Swivel	10

Product Questions & Answers (1)

Question by: Jean M on Aug 4, 2025, 9:56 AM

What size is this fitting? I'm needing a half inch.

Answer by: Customer Support on Aug 5, 2025, 2:00 PM

This Aeroquip FTGS fitting has a 0.5 inch end size, so it should work for your half inch application.
