Aeroquip Reusable FTGS - Code

Description & Features

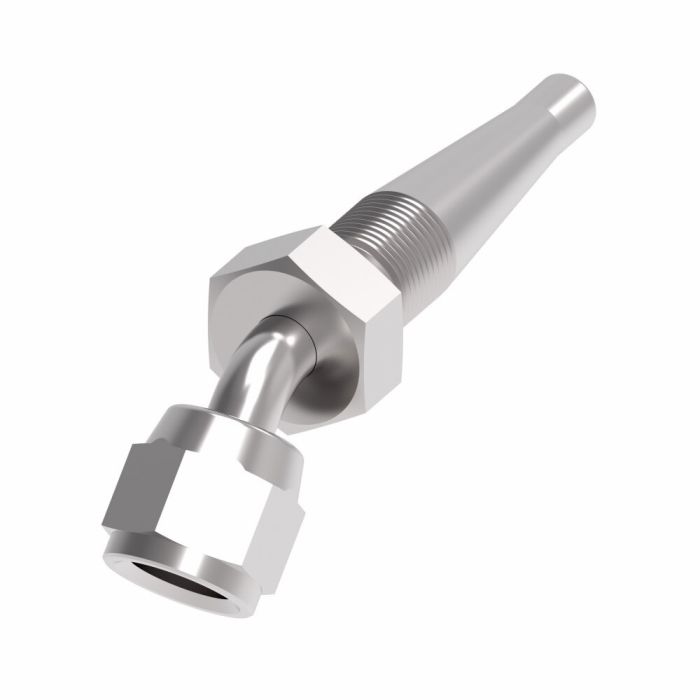

Constructed from carbon steel, this -4 dash size nipple assembly is designed for reusable hose fitting applications where reliable swivel connections are required. The SAE 37 female end (7/16 in.) mates with a male line/hose/tube end, making it a practical choice for hydraulic hose assemblies that need to be field-assembled or reconfigured without specialized tooling.

The Aeroquip Reusable FTGS - Code fitting is suited to a wide range of industrial hydraulic applications. Its reusable design helps reduce assembly time and supports efficient maintenance workflows. With a hex size of 0.56 in. and a drop dimension of 0.33 in., it fits established assembly envelopes without modification.

SKU: 185297-4S

Supplier Part Number (MPN): 185297-4S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 1.79 in	Compatible Hose ID 1/4 in	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 45 deg JIC Swivel	Construction Style Reusable	Cut-Off Factor 0.73 in	Dimensions 2.07 in L x 0.56 in W x 0.79 in H	Drop Dimensions 0.33 in	End Gender 1 Female	End Gender 2 Male	End Size 1 7/16 in	Finish Zinc-Plated	Fitting Type 45 deg Elbow	For Use With 1503 Series Hoses	Hex Size 0.38 x 0.56 in	Hose Dash Size 04	Inside Diameter 0.13 in	Material Steel	Material Construction Carbon Steel	Operating Temperature -40	Series 185297 Series	Thread Sealant Without Thread Sealant	Thread Size 7/16-20	Thread Type UNF

Product Questions & Answers (1)

Question by: Ralph S on Dec 5, 2025, 9:07 PM

What kind of fluid is this nipple assembly good for, or is there a chart somewhere?

Answer by: Customer Support on Dec 7, 2025, 7:23 AM

Eaton has a fluid compatibility document that can be downloaded. It's listed under the Documents section with the other product images and diagrams.
