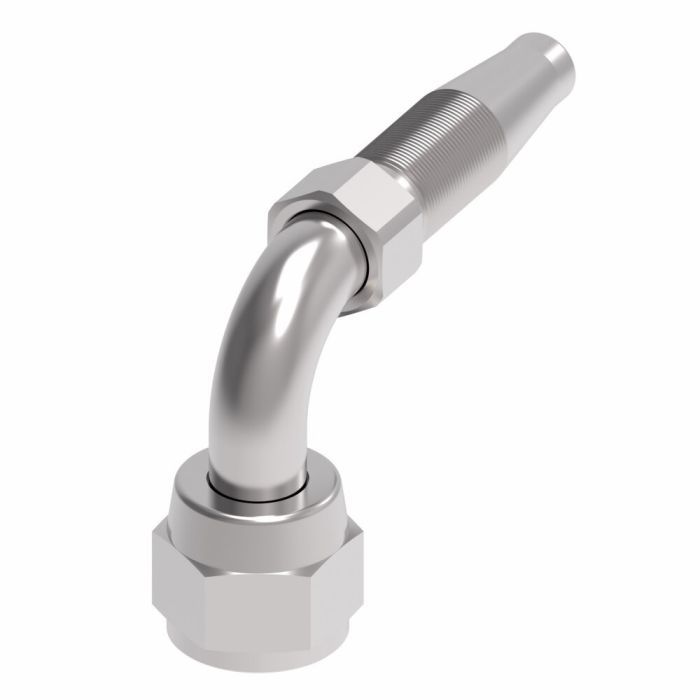

Aeroquip Reusable FTGS - Code

Description & Features

Constructed from carbon steel, this -6 dash size nipple assembly is designed for reusable hose fitting applications requiring a female swivel SAE 45 end connection. The Aeroquip Reusable FTGS - Code fitting pairs a 0.625-inch female swivel end with a male line/hose/tube end, offering a reliable mechanical connection suited to a wide range of hydraulic hose assemblies.

With a hex size of 0.5 inches and a drop dimension of 0.85 inches, the fitting is compact and well-suited to installations where space and assembly efficiency matter. Reusable construction helps cut assembly times and supports higher production throughput without sacrificing dependability. The fitting is compatible with the fluid types outlined in the Eaton fluid compatibility documentation for the 185302 series.

SKU: 185302-6S

Supplier Part Number (MPN): 185302-6S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.16 in	Compatible Hose ID 0.38 in	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 45 deg JIC Swivel	Construction Style Crimp	Cut-Off Factor 0.83 in	Dimensions 2.53 in L x 0.75 in W x 1.1 in H	Drop Dimensions 0.851 in	End Gender 1 Female	End Gender 2 Male	End Size 1 5/8 in	Finish Zinc-Plated	Fitting Type 90 deg Elbow	For Use With 1503 Series Hoses	Hex Size 3/4 x 1/2 in	Hose Dash Size 06	Inside Diameter 0.22 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Series 185302 Series	Thread Sealant Without Thread Sealant	Thread Size 5/8-18	Thread Type UNF

Product Questions & Answers (1)

Question by: Donna C on Apr 26, 2025, 9:42 PM

What kind of fluids can this thing handle?

Answer by: Customer Support on Apr 28, 2025, 5:56 PM

Eaton's fluid compatibility documentation for the 185302 series covers approved fluids.
