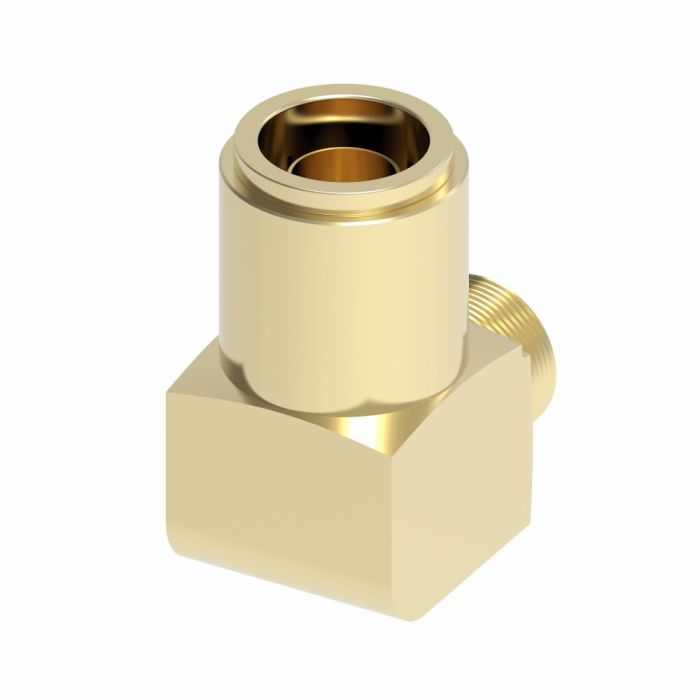

90° Male Elbow

Description & Features

Eaton Aeroquip's 90° Male Elbow is an essential component for air brake systems, ensuring reliable performance and durability. Constructed from high-quality brass, this elbow adapter features a female push-to-connect end measuring 0.625 inches and a male NPTF thread of 0.5 inches, facilitating seamless connection and installation. Engineered for flexibility, it meets SAE AA0302 and SAE J1131 certifications, guaranteeing adherence to industry standards.

Designed with Dura-Kote plating, this elbow offers superior corrosion resistance, extending its service life in harsh environments. It supports higher operating pressures than typical SAE standards, making it suitable for demanding applications. Part of the Weatherhead sub-brand, this adapter provides a range of design options, allowing for versatile system configurations.

SKU: 1869X10

Supplier Part Number (MPN): 1869X10

Specifications

Brand
Danfoss
Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
MNPT, Tube
Connection Type 1
Tube
Connection Type 2
Male NPTF
Dimension Standards
SAE AA0302
Fitting Type
90 deg Elbow
For Use With
Air Brake Tubings
Material
Brass
Material Construction
Brass
nmfc
60
Series
1869X Series
Thread Sealant
Without Thread Sealant

Similar Products

Model Number Connection Size 1 Connection Size 2 Price Action
Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

1869X6X6S Brass Push>Connect To Male NPT 90 Elbow

3/8 in

3/8 in

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

1869X6X2S Brass Push>Connect To Male NPT 90 Elbow

3/8 in

1/8 in

Brass Push>Connect Air Brake Tube Fitting, 0.25 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

1869X4X6S Brass Push>Connect To Male NPT 90 Elbow

1/4 in

3/8 in

Brass Push>Connect Air Brake Tube Fitting, 0.50 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1869X8X8S Brass Push>Connect To Male NPT 90 Elbow

1/2 in

1/2 in

Brass Push>Connect Air Brake Tube Fitting, 0.25 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

1869X4X4S Brass Push>Connect To Male NPT 90 Elbow

1/4 in

1/4 in

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/4-18 Male NPT, 90 deg Elbow

1869X6S Brass Push>Connect To Male NPT 90 Elbow

3/8 in

1/4 in

Brass Push>Connect Air Brake Tube Fitting, 0.38 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1869X6X8S Brass Push>Connect To Male NPT 90 Elbow

3/8 in

1/2 in

Brass Push>Connect Air Brake Tube Fitting, 0.25 Inch Tube OD To 1/8-27 Male NPT, 90 deg Elbow

1869X4S Brass Push>Connect To Male NPT 90 Elbow

1/4 in

1/8 in

Brass Push>Connect Air Brake Tube Fitting, 0.50 Inch Tube OD To 3/8-18 Male NPT, 90 deg Elbow

1869X8S Brass Push>Connect To Male NPT 90 Elbow

1/2 in

3/8 in

Brass Push>Connect Air Brake Tube Fitting, 0.63 Inch Tube OD To 1/2-14 Male NPT, 90 deg Elbow

1869X10S Brass Push>Connect To Male NPT 90 Elbow

5/8 in

1/2 in

Danfoss / Eaton Brass Adapter

1869X2.5

1/8 in

Danfoss / Eaton Brass Adapter

1869X2.5X1

Danfoss / Eaton Brass Adapter

1869X3

3/16 in

1/8 in

Danfoss / Eaton Brass Adapter

1869X4

1/4 in

1/8 in

Danfoss / Eaton Brass Adapter

1869X4X4

1/4 in

1/4 in

BRASS #6 PTC A.B X #4 MP 90*

1869X4X6

1/4 in

3/8 in

90° Male Elbow

1869X6

3/8 in

1/4 in

Danfoss / Eaton Brass Adapter

1869X6X2

3/8 in

1/8 in

90° Male Elbow

1869X6X6

3/8 in

3/8 in

90° Male Elbow

1869X6X8

3/8 in

1/2 in

Danfoss / Eaton Brass Adapter

1869X8

1/2 in

3/8 in

BRASS #8 PTC A.B X #4 MP 90*

1869X8X4

1/2 in

1/4 in

90° Male Elbow Swivel

1869X8X4S

1/2 in

1/4 in

Danfoss / Eaton Brass Adapter

1869X8X8

1/2 in

1/2 in

Danfoss / Eaton Brass Adapter

1869X10X6

5/8 in

3/8 in

Product Questions & Answers (3)

Question by: Curt C on Dec 17, 2025, 10:15 AM
Will this work for my truck's air brakes?
Answer by: Customer Support on Dec 18, 2025, 2:34 PM
This 90° male elbow adapter is designed specifically for air brake systems, so it should be suitable for your truck.
Question by: Roy P on Jun 6, 2025, 10:47 AM
does this hook up to a standard air brake line, or do i need some kinda special fitting on the other end?
Answer by: Customer Support on Jun 7, 2025, 1:49 PM
One end is a push-to-connect that accepts a 5/8-inch line, and the other end is a 1/2-inch NPTF male thread. NPTF is a dry-seal thread, so it forms a pressure-tight seal on its own without tape or sealant when properly torqued into a compatible port. Pretty common setup on air brake systems, which is exactly what this fitting is rated for.
Question by: Dustin W on Dec 25, 2025, 9:07 AM
got a nylon air brake line that’s push-to-connect, is this elbow the right style for that and what’s on the other end
Answer by: Customer Support on Dec 27, 2025, 6:49 AM
For air brake systems, this adapter gives you a push-to-connect female end on one side and a male NPTF threaded end on the other, with a 90 degree elbow and swivel style for routing.
