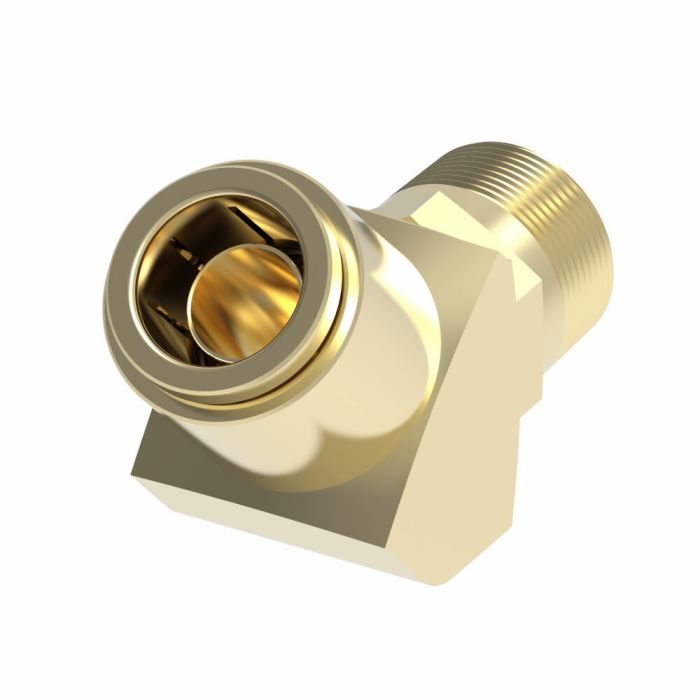

Designed for air brake systems, this 45-degree swivel elbow adapter connects a 3/8 in. push-to-connect fitting to a 1/4 in. NPTF male thread, allowing directional routing in space-constrained installations. Constructed from brass, the Danfoss / Eaton Brass Adapter is part of the Aeroquip Weatherhead line, which offers hundreds of configuration styles to accommodate varied assembly requirements.
Dura-Kote plating provides corrosion resistance suited to demanding environments, including exposure to moisture and temperature extremes down to -40°. The adapter is rated for operating pressures above SAE standards, making it a reliable choice where standard fittings may fall short. The swivel elbow design simplifies installation by allowing rotation during assembly without disturbing the connected line.
SKU: 1880X6S
Supplier Part Number (MPN): 1880X6S
|
Alternate Part Numbers
MINO-00015X03681
|
Application
Air brake systems
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13556
|
End Size 1
0.38
|
End Size 2
0.25
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
ICC
Elbow Adapters
|
Item Type
Push to Connect /NPTF Male 45°° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
60
|
Product Material
Brass
|
Product Width
0.71
|
Sub Brand
Weatherhead
|
Supplier Part Number
1880X6S
|
Product Weight
0.13 lbs
|
