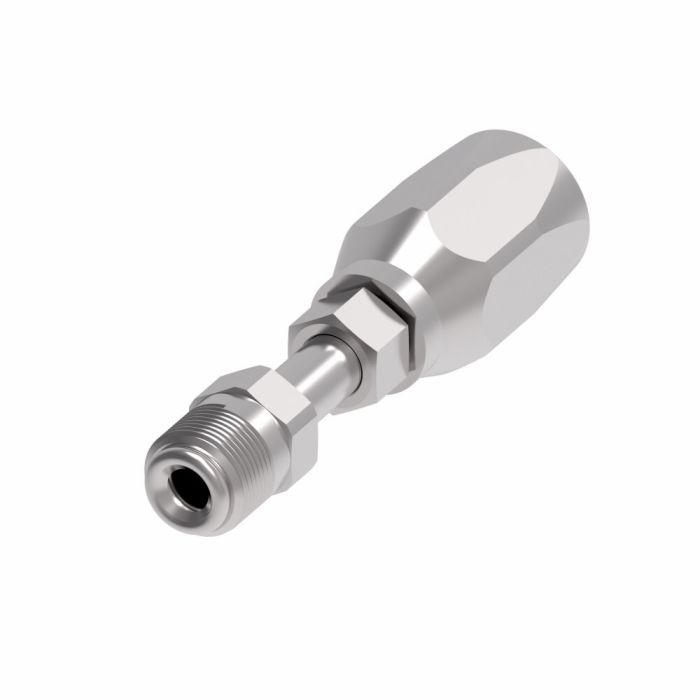

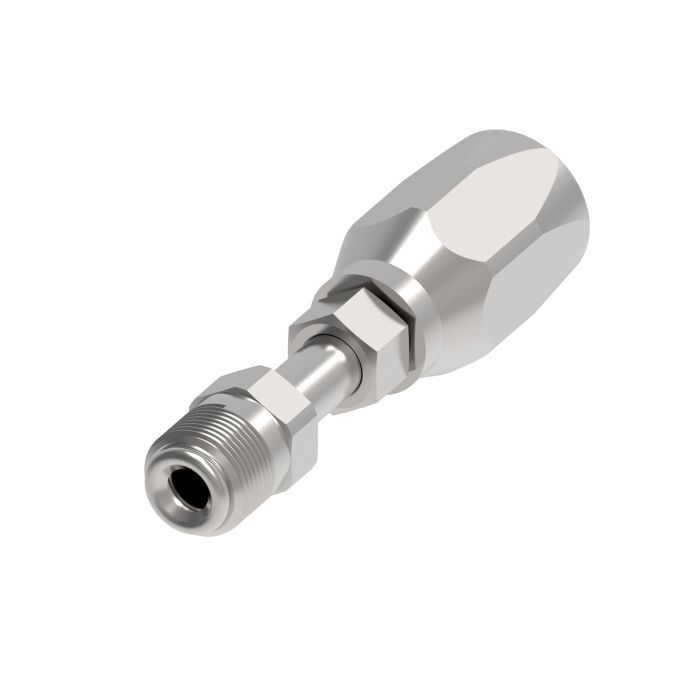

Aeroquip 100R5 #6 M INV FL X 8 HS

Description & Features

Constructed from carbon steel, this straight reusable hose fitting connects a #6 SAE Male Inverted Flare end to a -8 hose dash size, making it well-suited for use with 100R5 hydraulic hose assemblies. The 0.625-inch end size and 0.94-inch hex dimension are consistent with standard SAE specifications, supporting reliable compatibility across a wide range of industrial hydraulic equipment.

The Aeroquip 100R5 #6 M Inv Fl x 8 Hs is part of Aeroquip's 190111 Series of reusable fittings, designed to reduce assembly time in production and field environments. Reusable construction means the fitting can be disassembled and reinstalled without replacing the component, which is a practical advantage in maintenance-intensive applications. At 0.8 lb, the fitting is compact and straightforward to handle during installation.

SKU: 190111-6-8S

Supplier Part Number (MPN): 190111-6-8S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.13 in	Compatible Hose ID 1/2 in	Connection Size 1 1/2 in	Connection Size 2 3/8 in	Connection Type Hose, Male SAE Inverted Flared	Connection Type 1 Hose	Connection Type 2 Male SAE Inverted Flare	Construction Style Reusable	Cut-Off Factor 1.98 in	Dimensions 3.13 in L x 0.94 in W x 0.94 in H	End Gender 1 Male	End Size 1 5/8 in	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With 1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355 and FC802 Series A/C and Refrigeration Hoses	Hex Size 0.62 x 0.94 in	Hose Dash Size 08	Inside Diameter 0.28 in	Material Steel	Material Construction Carbon Steel	Reusable Socket Hex Size 0.938 in	Series 190111 Series	Thread Sealant Without Thread Sealant	Thread Size 5/8-18	Thread Type UNF	Tube Outside Diameter 1 0.51 in

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Type 2	Hose Dash Size
190111-4S Steel Reusable SAE Inv Fitting	1/4 in	1/4 in	Male SAE Inverted Flare	04
190111-5S Steel Reusable SAE Inv Fitting	5/16 in	5/16 in	Male SAE Inverted Flare	05
190111-5-6S Steel Reusable SAE Inv Fitting	3/8 in	5/16 in	Male SAE Inverted Flare	06
190111-8S Steel Reusable SAE Inv Fitting	1/2 in	1/2 in	Male SAE Inverted Flare	08
190111-6S Steel Reusable SAE Inv Fitting	3/8 in	3/8 in	Male SAE Inverted Flare	06
190111-10S	5/8 in	5/8 in	Male SAE Inverted Flare	10
190231-8	1/2 in	1/2 in	FNPT	08
