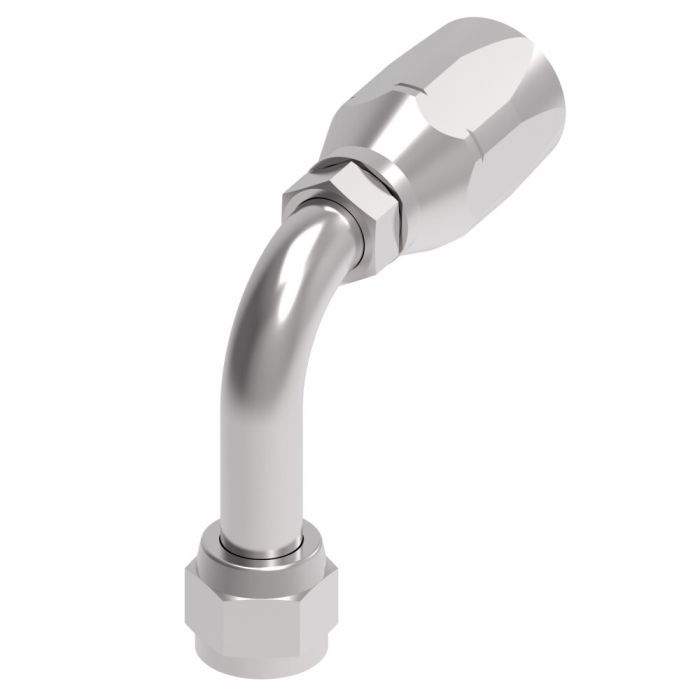

Aeroquip Reuse FIT 10 JIC SWIV

Ask A Question

Description & Features

The Aeroquip Reuse FIT 10 JIC SWIV fitting assembly is suitable for a wide range of applications. These carbon steel fittings are durable and dependable, helping to cut assembly times and boost production.

This Aeroquip fitting has a female end with a 0.875-inch size and SAE 37 connection.

SKU: 190263-10S

Supplier Part Number (MPN): 190263-10S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3-1/2 in
Compatible Hose ID
0.63 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
1.94 in
Dimension Standards
SAE J514
Dimensions
0.46 in ID
Drop Dimensions
3 in
End Connection Torque
55 to 70 lb-ft
End Gender 1
Female
End Size 1
7/8 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
2766, 2781 and FC1951 Series Hoses
Hex Size
1-1/4 x 1 in
Hose Dash Size
10
Inside Diameter
0.46 in
Material
Steel
Material Construction
Carbon Steel
Series
190263 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Similar Products

Model Number Connection Size 1 Connection Size 2 Hose Dash Size Price Action
Aeroquip Reuse FIT SAE37 R2

190263-4S

1/4 in

1/4 in

04

Aeroquip Reuse FIT 6 JIC SWIV

190263-6S

3/8 in

3/8 in

06

Aeroquip Reuse FIT 8 JIC SWIV

190263-8S

1/2 in

1/2 in

08

Aeroquip Reuse FIT 12 JIC SWIV

190263-12S

3/4 in

3/4 in

12

Aeroquip Reuse FIT 16 JIC SWIV

190263-16S

1 in

1 in

16

Product Questions & Answers (1)

Question by: Troy B on Jun 24, 2025, 6:37 PM
What size is that female end on this Aeroquip fitting?
Answer by: Customer Support on Jun 26, 2025, 6:50 AM
It's a female end with a 0.875-inch size and SAE 37 connection.
