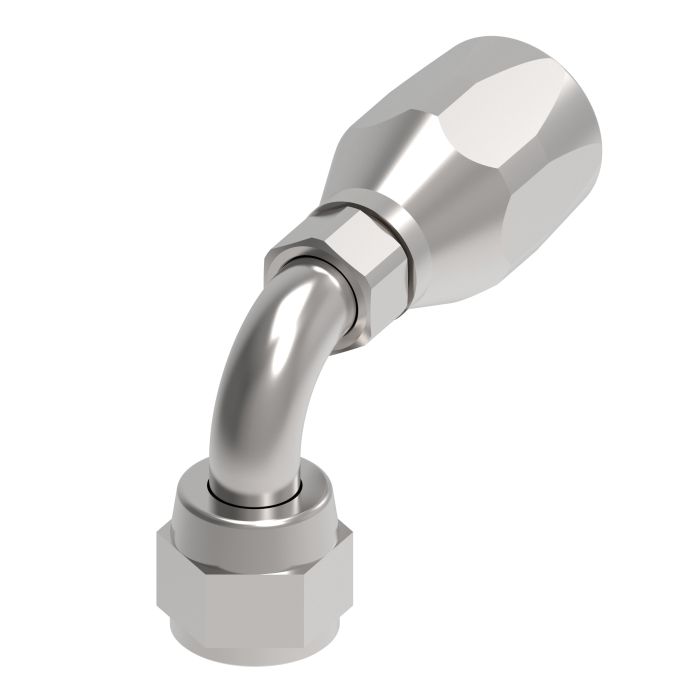

Aeroquip Reuse FIT 10 JIC SWIV

Ask A Question

Description & Features

The Aeroquip Reuse FIT 10 JIC SWIV is a fitting assembly designed for a wide range of applications, offering durable and dependable performance. This carbon steel fitting features a female end with a 0.875-inch SAE 37 connection.

This Aeroquip fitting helps reduce assembly times and increase production efficiency. With a width of 1.12 inches and a drop dimension of 1.2300 inches, it is designed for use with -8 hose dash size.

SKU: 190264-10-8S

Supplier Part Number (MPN): 190264-10-8S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.15 in
Compatible Hose ID
1/2 in
Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
1.64 in
Dimension Standards
SAE J514
Dimensions
3.65 in L x 1.12 in W x 2.34 in H
Drop Dimensions
1.23 in
End Connection Torque
57 to 62 lb-ft
End Gender 1
Female
End Size 1
7/8 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
2766, 2781 and FC1951 Series Hoses
Hex Size
3/4 in
Hose Dash Size
08
Inside Diameter
0.39 in
Material
Steel
Material Construction
Carbon Steel
Reusable Socket Hex Size
0.984 in
Series
190264 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Product Questions & Answers (1)

Question by: Daryl M on Jun 1, 2025, 11:53 AM
Will this fitting hold up okay in a hydraulic system on farm equipment?
Answer by: Customer Support on Jun 2, 2025, 8:21 PM
Designed for a wide range of applications, this fitting assembly offers durable and dependable performance for hydraulic systems.
