Aeroquip Reuse FIT 6 JIC SWIV

Ask A Question

Description & Features

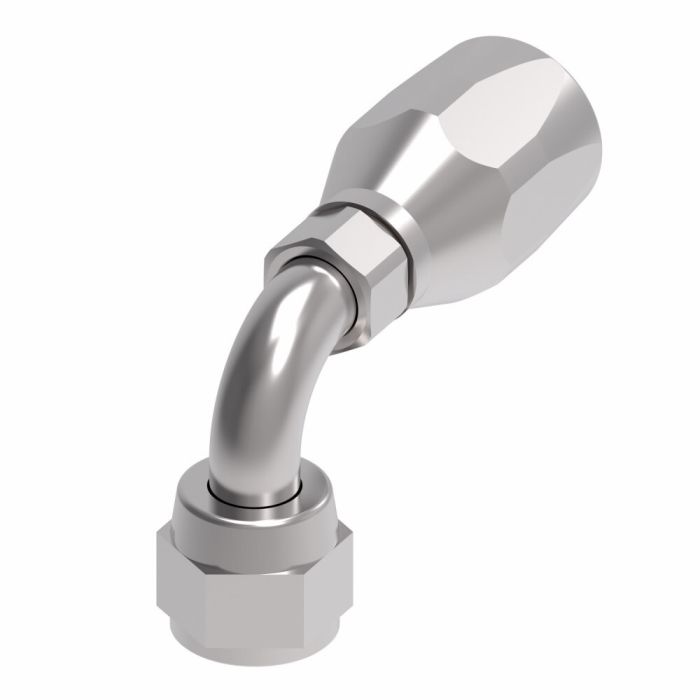

The Eaton Aeroquip Reuse FIT 6 JIC SWIV is a reusable hose fitting suitable for a wide range of applications. This fitting features a SAE 37˚ JIC swivel and a 90˚ short elbow for versatile connection options. Constructed from carbon steel, it provides durability and dependable performance in demanding hydraulic environments.

This Aeroquip fitting assembly has a female end gender with a 0.5625 end size. With features designed to cut assembly times and boost production, this fitting ensures efficient and secure connections.

SKU: 190264-6S

Supplier Part Number (MPN): 190264-6S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.72 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
1-1/4 in
Dimension Standards
SAE J514
Dimensions
0.31 in ID
Drop Dimensions
1 in
End Connection Torque
18 to 20 lb-ft
End Gender 1
Female
End Size 1
9/16 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
2766, 2781 and FC1951 Series Hoses
Hex Size
0.69 x 1 in
Hose Dash Size
06
Inside Diameter
0.31 in
Material
Steel
Material Construction
Carbon Steel
Series
190264 Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18
Thread Type
UNF

Similar Products

Model Number Connection Size 1 Connection Size 2 Hose Dash Size Price Action
Aeroquip Reuse FIT 4 JIC SWIV

190264-4S

1/4 in

1/4 in

04

Aeroquip Reuse FIT 8 JIC SWIV

190264-8-6S

1/2 in

3/8 in

06

Aeroquip Reuse FIT 8 JIC SWIV

190264-8S

1/2 in

3/4 in

08

Aeroquip Reuse FIT 10 JIC SWIV

190264-10-8S

5/8 in

1/2 in

08

Aeroquip Reuse FIT 10-JIC SWIV

190264-10S

5/8 in

5/8 in

10

Aeroquip Reuse FIT 12 JIC SWIV

190264-12S

3/4 in

3/4 in

12

Aeroquip Reuse FIT 16 JIC SWIV

190264-16S

1 in

1 in

16

Aeroquip Reuse FIT 20 JIC SWIV

190264-20S

1-1/4 in

1-1/4 in

20

Product Questions & Answers (2)

Question by: Hubert M on Jul 19, 2025, 11:27 AM
trying to swap out an old elbow fitting, is this one a 90 degree JIC swivel for a -6 hose?
Answer by: Customer Support on Jul 20, 2025, 12:30 PM
For a -6 hose, this is a reusable 90 degree short elbow with an SAE 37 degree JIC swivel female end, so it matches the common “-6 JIC swivel 90” style.
Question by: Scott M on Aug 24, 2025, 7:27 AM
Got a -6 hose I'm trying to fit with a 90-degree swivel elbow, this the right part for that?
Answer by: Customer Support on Aug 25, 2025, 10:25 AM
For a -6 hose with a SAE 37 degree JIC connection, the 190264-6S is the right call. It's a reusable fitting, so you're not cutting the hose end off every time you need to swap something out. The swivel feature on the JIC end makes it a lot easier to route lines in tight spots without fighting the connection to get it torqued down right. Carbon steel construction, short 90-degree elbow profile, and that 9/16-inch JIC female swivel end is built to mate with standard -6 JIC male fittings.
