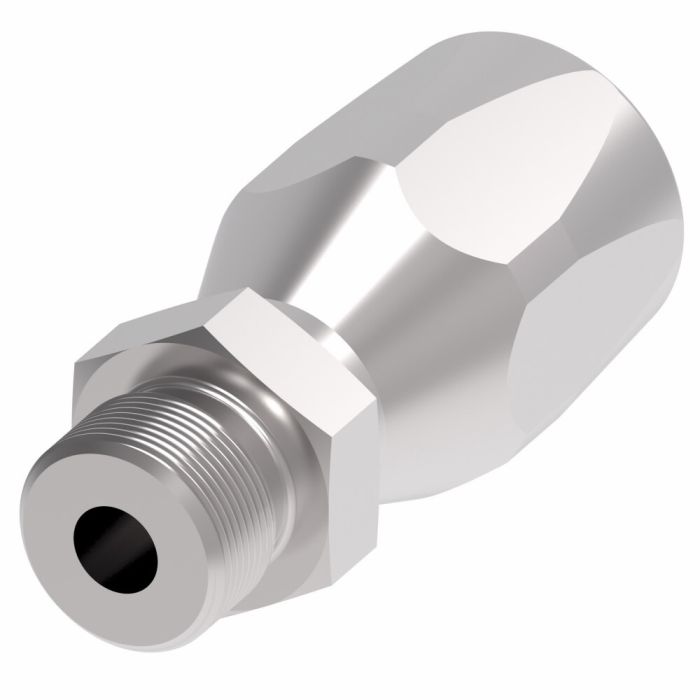

AEROQUIP REUSABLE FITTING

Ask A Question

Description & Features

Constructed from carbon steel, this male SAE O-ring Boss fitting is part of Aeroquip's reusable hose fitting line, designed for reliable performance across a broad range of hydraulic hose assemblies. The 3/4-inch male end pairs with a -8 hose dash size, making it a practical choice for medium-pressure hydraulic lines where secure, leak-resistant connections are required.

The Aeroquip Reusable Fitting is built to be disassembled and reused, helping to reduce material waste and cut assembly times in production or maintenance environments. A 0.94-inch hex size allows for straightforward installation and removal with standard tooling. At 0.8 lb, the fitting is compact and easy to handle during assembly.

SKU: 190463-8S

Supplier Part Number (MPN): 190463-8S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.35 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Hose, Male SAE ORB
Connection Type 1
Hose
Connection Type 2
Male SAE 37 deg ORB
Construction Style
Reusable
Cut-Off Factor
1.2 in
Dimensions
2.35 in L
End Gender 1
Male
End Size 1
3/4 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355 and FC802 Series Hoses
Hex Size
0.938 x 0.88 in
Hose Dash Size
08
Inside Diameter
0.36 in
Material
Steel
Material Construction
Carbon Steel
Series
190463 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Product Questions & Answers (1)

Question by: Kurt C on Mar 3, 2026, 8:23 AM
Will this fitting hold up in a hydraulic system that sees some pretty high temps and pressures, or am I gonna be chasing leaks?
Answer by: Customer Support on Mar 4, 2026, 6:31 PM
This Aeroquip fitting is constructed from carbon steel, so it's durable enough for medium-pressure hydraulic lines. It's designed to provide a secure, leak-resistant connection, which should minimize those headaches.
