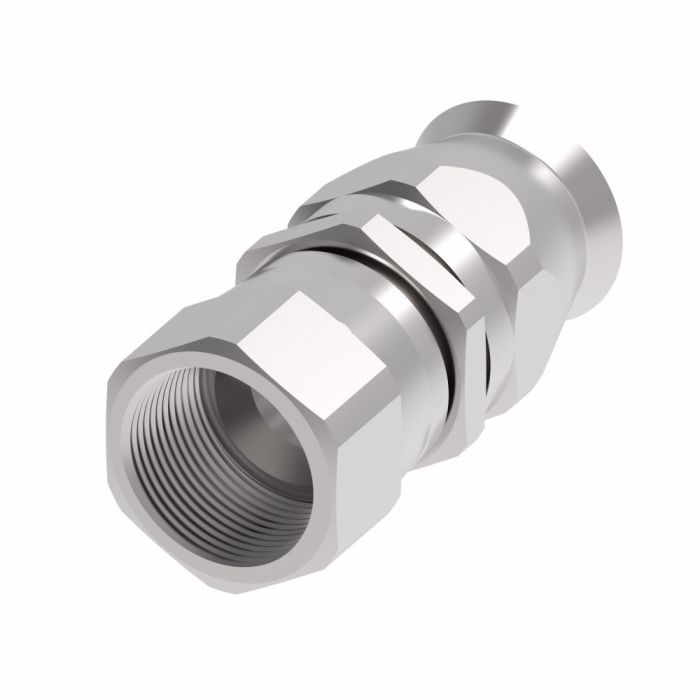

Aeroquip SUPR GEM FIT 4 F JIC

Description & Features

A female JIC 37° swivel fitting designed for use with -4 dash size hose, the Aeroquip SUPR GEM FIT 4 F JIC belongs to the Aeroquip 190600 Series of reusable hose fittings. Constructed from carbon steel, it provides reliable performance across a wide range of hydraulic hose assembly applications.

The SAE 37° JIC swivel end configuration suits line, hose, and tube connections where a dependable, leak-resistant seal is required. With a hex size of 0.56 inches and an end size of 0.4375 inches, this fitting is straightforward to install and contributes to faster assembly times in production environments. As a reusable fitting, it supports reassembly without replacing the fitting body, making it a practical choice for maintenance-focused applications.

SKU: 190600-4S

Supplier Part Number (MPN): 190600-4S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 1.58 in	Compatible Hose ID 1/4 in	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Flare Swivel	Construction Style Reusable	Cut-Off Factor 1.13 in	Dimensions 0.16 in ID x 1.58 in L	End Connection Torque 11 to 12 lb-ft	End Gender 1 Female	End Size 1 7/16 in	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With 2807 Series Hoses	Hex Size 0.563 in	Hose Dash Size 04	Inside Diameter 0.16 in	Material Steel	Material Construction Carbon Steel	Series 190600 Series	Thread Sealant Without Thread Sealant	Thread Size 7/16-20	Thread Type UNF

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Type 2	Hose Dash Size
63-190600-4 Steel Reusable JIC Teflon Fitting	1/4 in	7/16 in	Female SAE 37 deg JIC Swivel	04
63-190600-10 Steel Reusable JIC Teflon Fitting	5/8 in	7/8 in	Female SAE 37 deg JIC Swivel	10
63-190600-12 Steel Reusable JIC Teflon Fitting	3/4 in	1-1/16 in	Female SAE 37 deg JIC Swivel	12
63-190600-8 Steel Reusable JIC Teflon Fitting	1/2 in	3/4 in	Female SAE 37 deg JIC Swivel	08
190600-3S Steel Reusable JIC Teflon Fitting	3/16 in	3/16 in	Female SAE 37 deg JIC Flare Swivel	03
63-190600-20 Steel Reusable JIC Teflon Fitting	1-1/4 in	1-5/8 in	Female SAE 37 deg JIC Swivel	20
63-190600-16 Steel Reusable JIC Teflon Fitting	1 in	1-5/16 in	Female SAE 37 deg JIC Swivel	16
63-190600-5 Steel Reusable JIC Teflon Fitting	5/16 in	1/2 in	Female SAE 37 deg JIC Swivel	05
63-190600-6	3/8 in	9/16 in	Female SAE 37 deg JIC Swivel	06
190600-6S	3/8 in	3/8 in	Female SAE 37 deg JIC Flare Swivel	06
190600-8S	1/2 in	1/2 in	Female SAE 37 deg JIC Flare Swivel	08
190600-10S	5/8 in	5/8 in	Female SAE 37 deg JIC Flare Swivel	10
