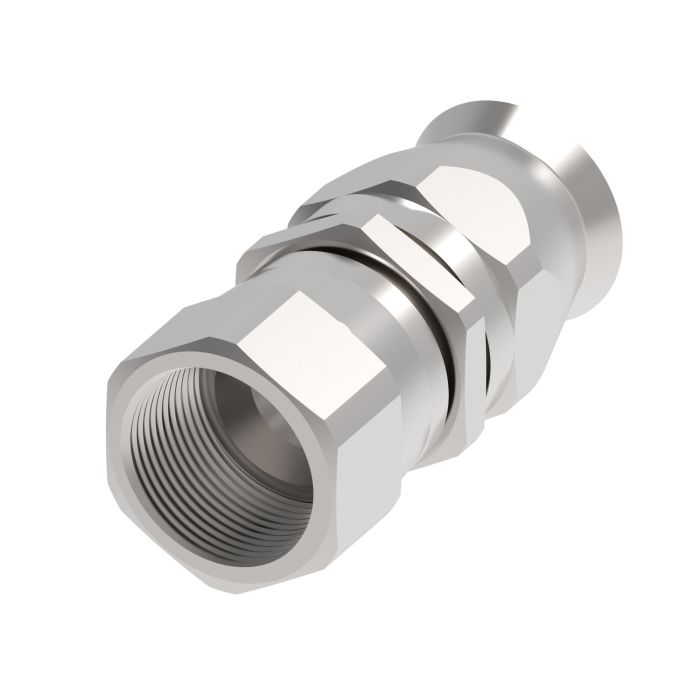

main product photo

Aeroquip SUPR GEM FIT 5 F JIC

Ask A Question

Description & Features

Crafted from durable stainless steel, the Aeroquip SUPR GEM FIT 5 F JIC fitting is designed for reliability across a wide range of industrial applications. Featuring a female SAE 37° JIC swivel connection, this fitting ensures secure and efficient linkage with a 0.5-inch end size. Its robust construction not only enhances durability but also helps in reducing assembly times, boosting production efficiency. Ideal for use with hoses, lines, and tubes, the fitting's versatility makes it a valuable component in various hydraulic systems.

With a hex size of 0.62 inches and a hose dash size of -5, this fitting assembly is engineered for precise compatibility with SAE standards, ensuring dependable performance. The Aeroquip SUPR GEM FIT 5 F JIC is part of Eaton Aeroquip's renowned line of reusable hose fittings, known for their dependability and ease of use.

SKU: 190600-5C

Supplier Part Number (MPN): 190600-5C

Alternate Part Numbers: C1AM43, MI-03941950, MINO-00015F75143

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.68 in
Compatible Hose ID
0.31 in
Connection Size 1
5/16 in
Connection Size 2
5/16 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Construction Style
Reusable
Cut-Off Factor
1.17 in
Dimensions
1.68 in L x 0.62 in W x 0.62 in H
End Connection Torque
15 to 16 lb-ft
End Gender 1
Female
End Size 1
1/2 in
Fitting Type
Hose Fitting
For Use With
2807, FC465 and S-TW Series PTFE Hoses
Hex Size
16 mm
Hose Dash Size
05
Inside Diameter
0.23 in
Material
Stainless Steel
Material Construction
316 Stainless Steel
nmfc
50
Segment Code
C
Series
190600 Series
Thread Sealant
Without Thread Sealant
Thread Size
1/2-20
Thread Type
UNF

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Wayne J on Feb 24, 2026, 8:06 PM
trying to match up a fitting i already got, is this one a female JIC 37 swivel and what size is it?
Answer by: Customer Support on Feb 25, 2026, 8:10 PM
For fit and connection style, it is a SAE 37 degree JIC swivel with a female end. The end size listed is 0.5, and the supplier part number is 190600-5C.
