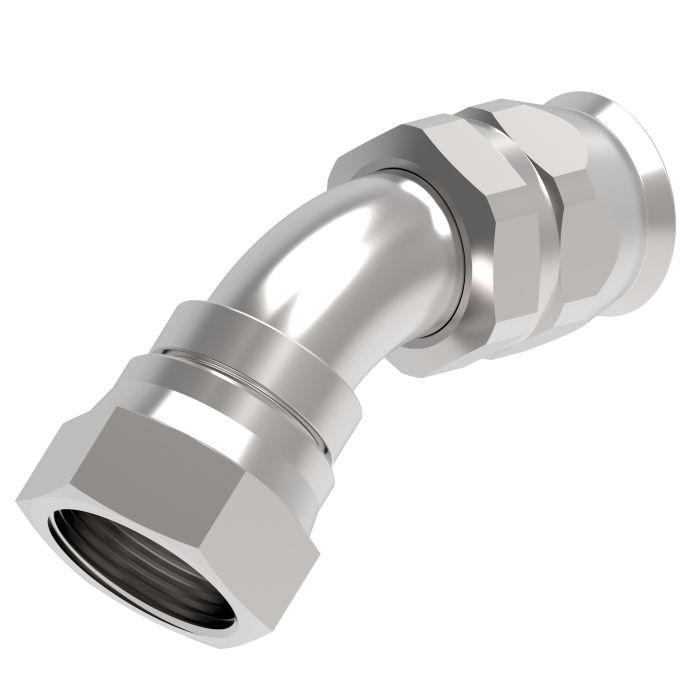

Aeroquip FJIC 45D ELBOR

Ask A Question

Description & Features

A carbon steel, 45-degree elbow fitting designed for SAE 45 female JIC connections, this reusable hose fitting is built for reliable performance across a broad range of hydraulic hose assemblies. The -20 hose dash size and 1.75-inch hex accommodate larger-diameter hose configurations, with a drop dimension of 1.22 inches suited to installations where routing clearance matters.

The Aeroquip FJIC 45D Elbor belongs to Aeroquip's 190773 Series of reusable fittings, offering a practical advantage in assembly-intensive environments where cut assembly times and repeatable fit are priorities. The reusable design allows the fitting to be disassembled and reinstalled without replacing components, reducing waste and downtime. Carbon steel construction provides dependable durability in demanding industrial hydraulic service.

SKU: 190773-20S

Supplier Part Number (MPN): 190773-20S

Specifications

a Dimensions
3.8 in
Compatible Hose ID
1-1/4 in
Compatible Tube OD
1-1/4 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
3.14 in
Dimensions
1.06 in ID
Drop Dimensions
1 in
End Gender 1
Female
End Size 1
20
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
2807, FC465 and S-TW Series PTFE Hoses
Hex Size
1-3/4 x 2 in
Hose Dash Size
20
Inside Diameter
1-1/16 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
C
Series
190773 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/8-12
Thread Type
UN
Tube Outside Diameter 1
1-1/4 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Sheila H on May 24, 2025, 9:07 PM
How durable is this thing, really? I'm lookin' for somethin' that can handle some abuse.
Answer by: Customer Support on May 26, 2025, 6:30 AM
Carbon steel gives this fitting assembly dependable durability, even in demanding industrial hydraulic applications.
