AEROQUIP FITTING

Description & Features

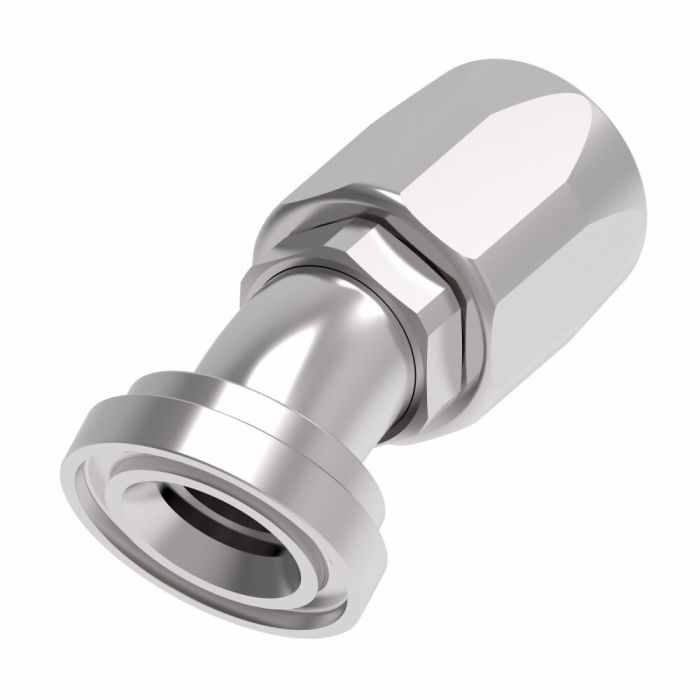

This Aeroquip Fitting features a flanged end type on one side and a line/hose/tube end type on the other.

Made from carbon steel, this fitting is suitable for a wide range of applications, offering a durable and dependable connection. It is designed to cut assembly times and boost production efficiency. This fitting has a product width of 2.38 inches and a drop dimension of 0.5800 inches. The hex size 2 measures 2.44 inches, with a hose dash size of -24.

SKU: 190846-24S

Supplier Part Number (MPN): 190846-24S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.96 in	Compatible Hose ID 1-1/2 in	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 Female Code 61 Split Flanged	Construction Style Reusable	Cut-Off Factor 2.51 in	Dimensions 1.28 in ID	Drop Dimensions 1 in	End Connection Torque 96 to 111 lb-ft	End Size 1 24	Finish Dura-Kote™	Fitting Type 30 deg Elbow	For Use With 1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355 and FC802 Series Hoses	Hex Size 2.25 x 2.44 in	Hose Dash Size 24	Inside Diameter 1.28 in	Material Steel	Material Construction Carbon Steel	Series 190486 Series	Thread Sealant Without Thread Sealant

Similar Products

Model Number	Connection Size 1	Connection Size 2	Hose Dash Size	Price	Action
190846-32S	2 in	2 in	32

Product Questions & Answers (1)

Question by: Kirk W on Nov 7, 2025, 8:39 PM

Will this fitting hold up okay in a hydraulic system for heavy equipment?

Answer by: Customer Support on Nov 9, 2025, 9:49 AM

Made from carbon steel, this Aeroquip fitting is durable and dependable for a wide range of applications.
