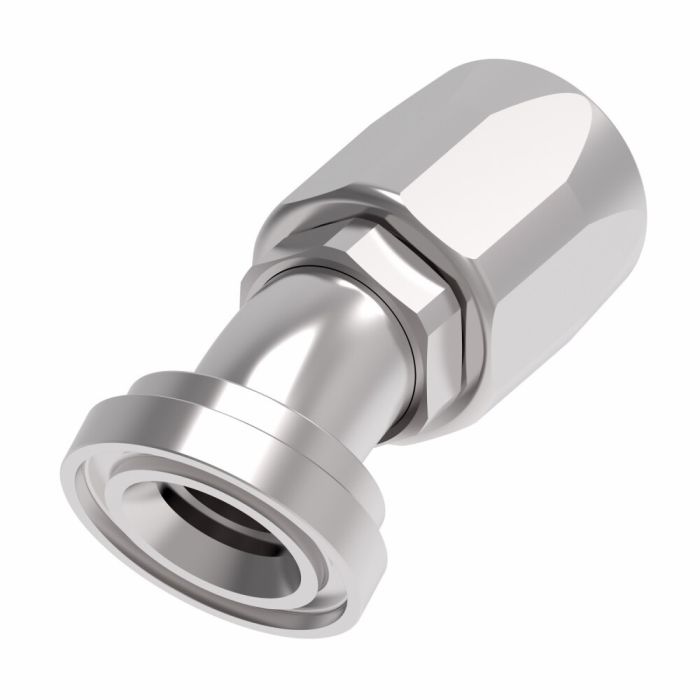

Aeroquip Fitting (REUS) 61-Flange R5

Description & Features

A carbon steel reusable fitting designed for SAE Code 61 flange connections, the Aeroquip Fitting (REUS) 61-Flange R5 is configured as a 30° elbow and sized for -32 hose dash applications. The flanged end pairs with a line, hose, or tube connection, making it a practical choice for high-flow hydraulic circuits where reusability and reliable sealing matter.

Built under the Aeroquip brand by Danfoss/Eaton, this 190846 Series fitting is engineered to reduce assembly time without sacrificing dependability. Carbon steel construction supports the demands of industrial hydraulic environments, and the reusable design allows for disassembly and reassembly without replacing the fitting body. At 2.06 lb, it is a substantial assembly suited to demanding service conditions across a wide range of hydraulic applications.

SKU: 190846-32S

Supplier Part Number (MPN): 190846-32S

Specifications

a Dimensions 4.68 in	Compatible Hose ID 2 in	Connection Size 1 2 in	Connection Size 2 2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 Female Code 61 Split Flanged	Construction Style Reusable	Cut-Off Factor 2.84 in	Dimensions 1-3/4 in ID	Drop Dimensions 1 in	End Connection Torque 96 to 111 lb-ft	End Size 1 32	Finish Dura-Kote™	Fitting Type 30 deg Elbow	For Use With 1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355 and FC802 Series Hoses	Hex Size 1.94 x 1.75 in	Hose Dash Size 32	Inside Diameter 1-3/4 in	Material Steel	Material Construction Carbon Steel	Series 190486 Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Ricky B on Jan 26, 2026, 2:24 PM

Just want to be sure, this fitting is steel, right? I'm working with some pretty high pressures and need something tough.

Answer by: Customer Support on Jan 28, 2026, 6:37 AM

Yes, this Aeroquip fitting is made from carbon steel, so it should hold up well in demanding hydraulic applications.
