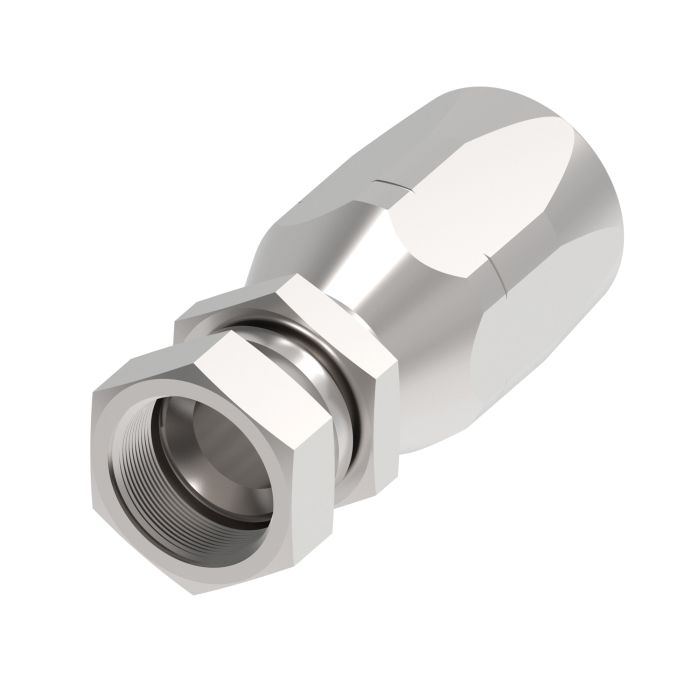

main product photo

AEROQUIP FITTING

Ask A Question

Description & Features

Designed for reusable assembly in hydraulic hose applications, this Aeroquip Fitting is a carbon steel swivel fitting with a female SAE 37° JIC end connection. It accommodates a -16 hose dash size and carries a hex size of 1.75 inches, making it compatible with standard tooling used in industrial hydraulic hose assemblies.

Part of Aeroquip's 190933 Series, this fitting is built to reduce assembly times while maintaining dependable performance across a wide range of hydraulic applications. The swivel design allows for easier alignment during installation, helping to minimize stress on connected hose lines.

SKU: 190933-16S

Supplier Part Number (MPN): 190933-16S

Specifications

a Dimensions
4.48 in
Compatible Hose ID
1 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
2.43 in
Dimensions
4.48 in L x 1.75 in W x 1.75 in H
End Connection Torque
127 to 133 lb-ft
End Gender 1
Female
End Size 1
16
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
GH493 and FC736 Series Hoses
Hex Size
1-1/2 x 13/4 in
Hose Dash Size
16
Inside Diameter
0.82 in
Material
Steel
Material Construction
Carbon Steel
Series
190933 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/16-12
Thread Type
UN

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Curt H on May 3, 2025, 7:50 AM
What size hex wrench do I need for this fitting?
Answer by: Customer Support on May 4, 2025, 12:45 PM
You'll need a 1.75-inch wrench to tighten this fitting, which is a pretty standard size for this type of hydraulic work.
