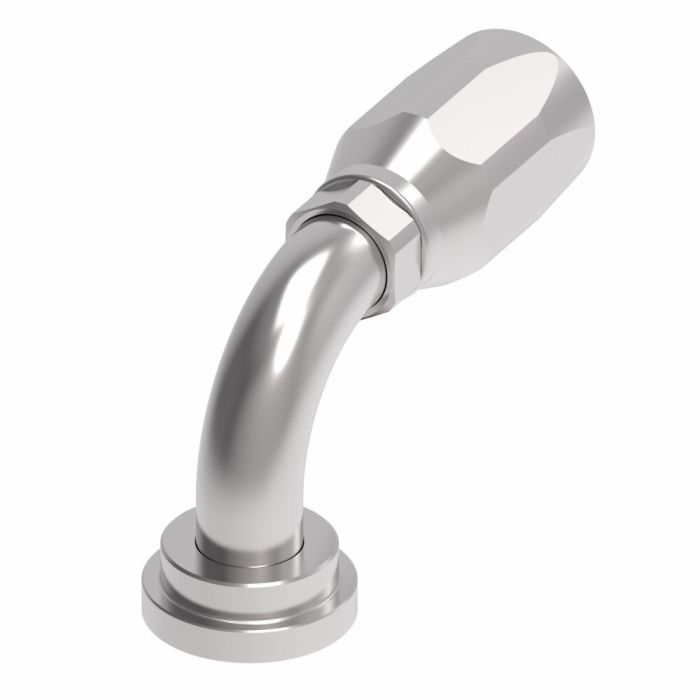

Aeroquip Reusable FTGS - Code

Ask A Question

Description & Features

Constructed from durable carbon steel, the Aeroquip Reusable FTGS - Code is a reliable choice for industrial hydraulic systems requiring SAE Code 61 compatibility. This 90˚ elbow fitting is designed for flanged connections on one end and line, hose, or tube connections on the other, making it versatile for a variety of applications. Its robust build ensures dependable performance, while the compact 2.3800 drop dimension facilitates easy installation in tight spaces.

This fitting features a substantial hex size of 1.75, offering ease of assembly and maintenance, thereby reducing production downtime. The hose dash size of -16 indicates its compatibility with specific hose sizes, ensuring a secure and leak-proof connection. Aeroquip's commitment to quality ensures the fitting's durability and longevity, even in demanding environments. Ideal for applications where efficiency and reliability are paramount, this fitting is a vital component in maintaining system integrity.

SKU: 190937-16S

Supplier Part Number (MPN): 190937-16S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
5.84 in
Compatible Hose ID
1 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Flanged, Hose
Connection Type 1
Flanged
Connection Type 2
Hose
Construction Style
Reusable
Cut-Off Factor
3.28 in
Dimensions
5.84 in L
Drop Dimensions
2 in
End Connection Torque
50 to 60 lb-ft
End Size 1
16
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
FC736 and GH493 Series Hoses
Hex Size
1-3/4 in
Hose Dash Size
16
Inside Diameter
0.81 in
Material
Steel
Material Construction
Carbon Steel
Series
Spiral Single Skive Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Brent W on Apr 7, 2025, 5:35 PM
How much room do I need to give myself for the drop on this elbow?
Answer by: Customer Support on Apr 9, 2025, 12:31 PM
The drop dimension on this fitting is 2.3800, so make sure you've got that much clearance in your setup.
